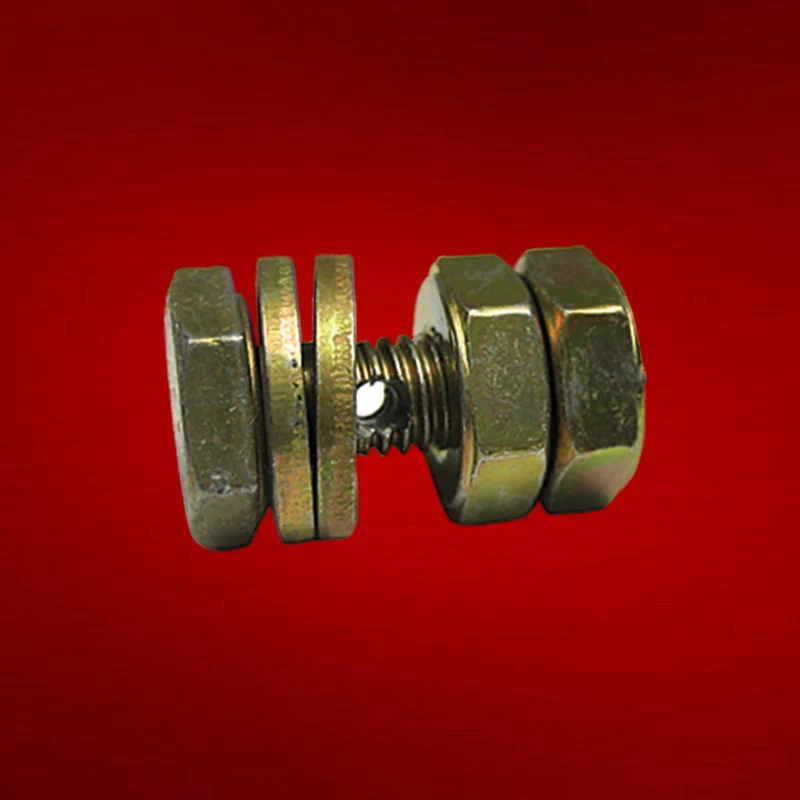

BOLT TYPE TERMINAL - New Surplus
P/N: 05-16100
Category: Terminals
This product requires a custom quote. Please contact our sales team for pricing information or submit an RFQ (Request for Quote).
Available Inventory
| Condition | Stock |
|---|---|
| New Surplus | 5 Available |
Product Description
The 05-16100 is a bolt-type terminal that secures solid control wire to actuator arms, replacing traditional bug nuts. It uses a drilled AN3 (3/16 inch) bolt with included nuts and washers for assembly. Commonly installed on throttle arms and similar control linkages where wire attachment requires a positive mechanical lock.
Installation follows aircraft maintenance manual procedures with standard AN hardware tightening practices. Verify wire diameter compatibility with the drilled shank before final assembly.
Please note: Product descriptions are provided for informational purposes. Always refer to your aircraft's Illustrated Parts Catalog (IPC) to verify part compatibility and specifications.
Frequently Asked Questions
What is the BOLT TYPE TERMINAL (P/N 05-16100)?
The 05-16100 is a bolt-type terminal that secures solid control wire to actuator arms, replacing traditional bug nuts. It uses a drilled AN3 (3/16 inch) bolt with included nuts and washers for assembly.
Is the 05-16100 compatible with my aircraft's avionics suite?
Avionics compatibility depends on your aircraft model and existing installation. The BOLT TYPE TERMINAL is available in: New Surplus. We recommend checking your aircraft's wiring diagrams and STC documentation, or contact our avionics team for compatibility assistance.
Does the 05-16100 come with an 8130-3 airworthiness tag?
Availability of an FAA 8130-3 tag depends on the part condition. Overhauled and repaired units typically include 8130-3 documentation. As-removed units may include a removal tag with trace history. Contact us for specific documentation on the condition you need.
Do you offer bench testing for the 05-16100?
We can arrange bench testing through our network of FAA-certified repair stations. Call (904) 998-9101 for testing availability and turnaround times, or submit an RFQ with your specific requirements.
