HINGE (P/N 0523816-1) - New Surplus, As Removed
P/N: 0523816-1
Category: Fasteners & Hardware
This product requires a custom quote. Please contact our sales team for pricing information or submit an RFQ (Request for Quote).
Available Inventory
| Condition | Stock |
|---|---|
| New Surplus | 2 Available |
| As Removed | 3 Available |
Product Description

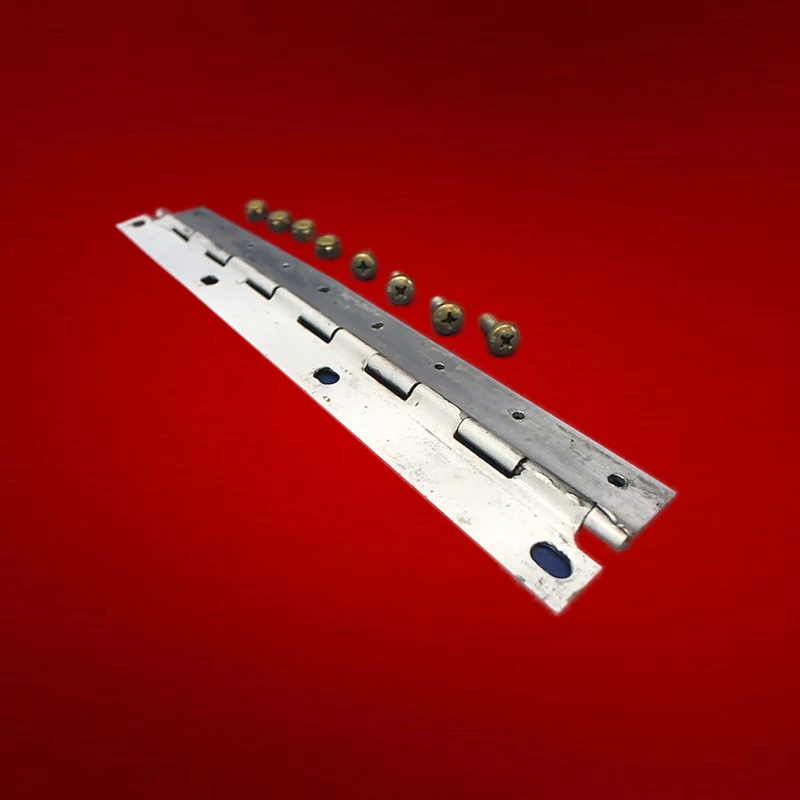

The 0523816-1 is an aileron hinge assembly for Cessna 172S aircraft. This steel hinge provides the pivot interface between the aileron and wing hinge bracket, enabling controlled rotation during flight control operation. The assembly serves as primary flight-control articulation hardware at the aileron hinge station.
Installation requires strict adherence to the aircraft maintenance manual and compatibility verification with your aircraft's Illustrated Parts Catalog. Also referenced as NSN 5342-00-182-5695.
Please note: Product descriptions are provided for informational purposes. Always refer to your aircraft's Illustrated Parts Catalog (IPC) to verify part compatibility and specifications.
Frequently Asked Questions
What is the HINGE (P/N 0523816-1)?
The 0523816-1 is an aileron hinge assembly for Cessna 172S aircraft. This steel hinge provides the pivot interface between the aileron and wing hinge bracket, enabling controlled rotation during flight control operation.
Does the 0523816-1 meet AN/MS/NAS aviation specifications?
Aircraft hardware is manufactured to military and aviation specifications. The HINGE conforms to its applicable AN (Air Force-Navy), MS (Military Standard), or NAS (National Aerospace Standard) specification. Contact us for specific specification details.
What material is the 0523816-1 manufactured from?
Aviation hardware is available in various materials including cadmium-plated steel, stainless steel, aluminum alloy, and titanium depending on the application. Contact us for material certification and specifications for the 0523816-1.
Can I order the 0523816-1 in custom quantities?
Yes, we sell hardware in various quantities from single units to bulk lots. The HINGE is available in: New Surplus, As Removed. Submit an RFQ for volume pricing or call (904) 998-9101 for quantity availability.
