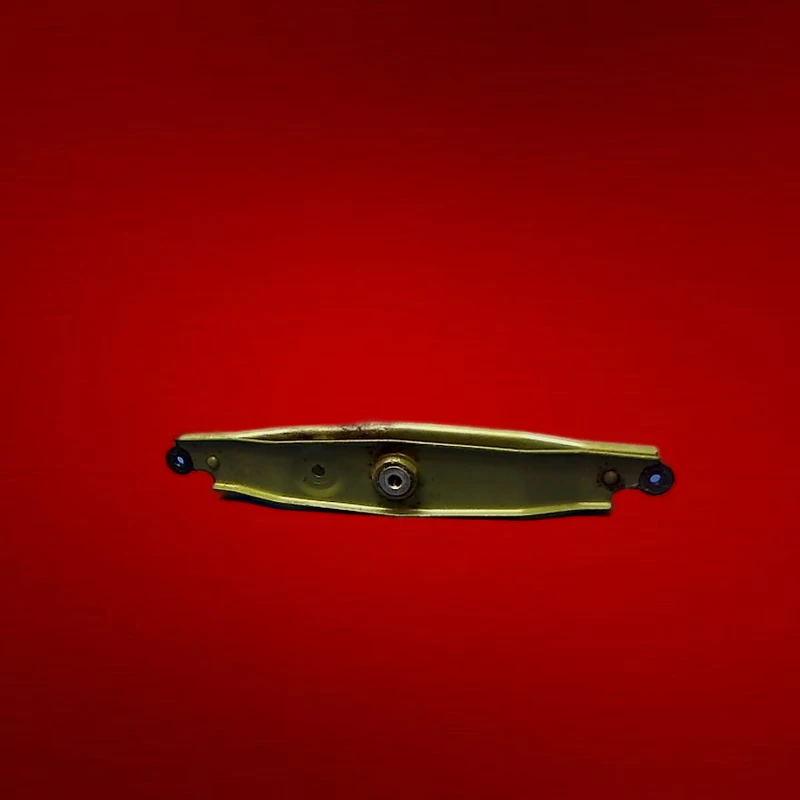

BELLCRANK (P/N 0861500-1) - As Removed
P/N: 0861500-1
Category: Controls & Cables
This product requires a custom quote. Please contact our sales team for pricing information or submit an RFQ (Request for Quote).
Available Inventory
| Condition | Stock |
|---|---|
| As Removed | 1 Available |
Product Description
The 0861500-1 is an aircraft bellcrank that redirects linear cable or push-rod motion through a fixed pivot point in flight-control linkages. This precision-machined component translates control inputs at 90-degree angles, commonly used in aileron control runs at wing ribs or fuselage stations. Aircraft-grade metal construction with precision pivot bores maintains control geometry and prevents binding during operation.
Installation requires approved hardware and torque values per the aircraft maintenance manual, with compatibility verification in the Illustrated Parts Catalog.
Please note: Product descriptions are provided for informational purposes. Always refer to your aircraft's Illustrated Parts Catalog (IPC) to verify part compatibility and specifications.
Frequently Asked Questions
What is the BELLCRANK (P/N 0861500-1)?
The 0861500-1 is an aircraft bellcrank that redirects linear cable or push-rod motion through a fixed pivot point in flight-control linkages. This precision-machined component translates control inputs at 90-degree angles, commonly used in aileron control runs at wing ribs or fuselage stations.
Is the 0861500-1 a PMA or OEM part?
The BELLCRANK may be available as an OEM (Original Equipment Manufacturer) or PMA (Parts Manufacturer Approval) part depending on condition and source. Both carry FAA certification for airworthiness. Currently available in: As Removed. Contact us for sourcing details.
Does the 0861500-1 include installation hardware?
Installation hardware requirements vary by application. Check your aircraft's Structural Repair Manual (SRM) or Illustrated Parts Catalog (IPC) for the complete installation kit requirements for the BELLCRANK. We stock related hardware and can help identify companion parts.
Can the 0861500-1 be shipped internationally?
Yes, we ship airframe components worldwide. International orders typically arrive within 3-14 business days depending on destination. Export documentation and customs forms are included. Contact us for international shipping quotes on the 0861500-1.
