MINI LED (P/N 11-09629) - New Surplus
P/N: 11-09629
Category: Electrical & Electronic Components
This product requires a custom quote. Please contact our sales team for pricing information or submit an RFQ (Request for Quote).
Available Inventory
| Condition | Stock |
|---|---|
| New Surplus | 7 Available |
Product Description

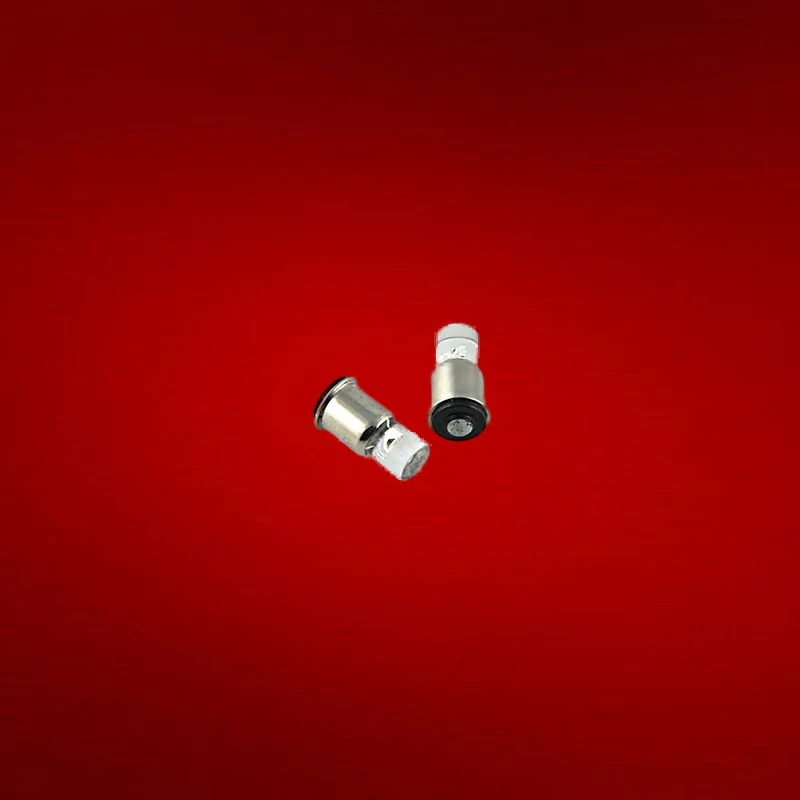

The 11-09629 is a T1-3/4 midget-flange LED indicator lamp for aircraft instrument and annunciator panels. This solid-state lamp operates on 5–28V AC or DC, providing a direct replacement for miniature incandescent bulbs in compatible sockets. The bi-polar design eliminates polarity concerns in many installations.
Commonly used in cockpit lighting, warning indicators, and status annunciators on general aviation aircraft. Install per the aircraft wiring diagram and maintenance manual, verifying socket compatibility before replacement.
Please note: Product descriptions are provided for informational purposes. Always refer to your aircraft's Illustrated Parts Catalog (IPC) to verify part compatibility and specifications.
Frequently Asked Questions
What is the MINI LED (P/N 11-09629)?
The 11-09629 is a T1-3/4 midget-flange LED indicator lamp for aircraft instrument and annunciator panels. This solid-state lamp operates on 5–28V AC or DC, providing a direct replacement for miniature incandescent bulbs in compatible sockets.
Is the 11-09629 compatible with my aircraft's avionics suite?
Avionics compatibility depends on your aircraft model and existing installation. The MINI LED is available in: New Surplus. We recommend checking your aircraft's wiring diagrams and STC documentation, or contact our avionics team for compatibility assistance.
Does the 11-09629 come with an 8130-3 airworthiness tag?
Availability of an FAA 8130-3 tag depends on the part condition. Overhauled and repaired units typically include 8130-3 documentation. As-removed units may include a removal tag with trace history. Contact us for specific documentation on the condition you need.
Do you offer bench testing for the 11-09629?
We can arrange bench testing through our network of FAA-certified repair stations. Call (904) 998-9101 for testing availability and turnaround times, or submit an RFQ with your specific requirements.
