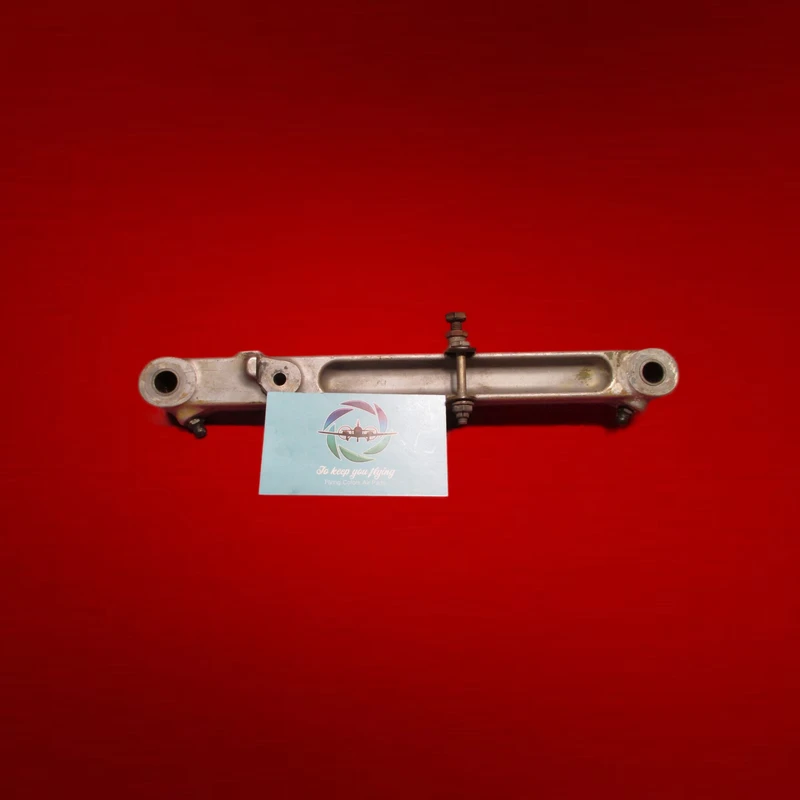

DRAG BRACE (P/N 16189) - As Removed
P/N: 16189
Category: Bearings & Bushings
This product requires a custom quote. Please contact our sales team for pricing information or submit an RFQ (Request for Quote).
Available Inventory
| Condition | Stock |
|---|---|
| As Removed | 1 Available |
Product Description
The 16189 drag brace is a landing gear component that resists fore-aft loads during aircraft operations. This steel assembly pivots on bushings at attachment lugs, providing over-center downlock stability. Installed between the trunnion and shock strut in retractable gear systems, the drag brace prevents gear creep during landing and taxi.
The hinge mid-span design allows controlled articulation while maintaining structural rigidity. Installation requires verification against the aircraft's Illustrated Parts Catalog and rigging per the maintenance manual to ensure proper load distribution and gear synchronization.
Please note: Product descriptions are provided for informational purposes. Always refer to your aircraft's Illustrated Parts Catalog (IPC) to verify part compatibility and specifications.
Frequently Asked Questions
What is the DRAG BRACE (P/N 16189)?
The 16189 drag brace is a landing gear component that resists fore-aft loads during aircraft operations. This steel assembly pivots on bushings at attachment lugs, providing over-center downlock stability.
Does the 16189 meet AN/MS/NAS aviation specifications?
Aircraft hardware is manufactured to military and aviation specifications. The DRAG BRACE conforms to its applicable AN (Air Force-Navy), MS (Military Standard), or NAS (National Aerospace Standard) specification. Contact us for specific specification details.
What material is the 16189 manufactured from?
Aviation hardware is available in various materials including cadmium-plated steel, stainless steel, aluminum alloy, and titanium depending on the application. Contact us for material certification and specifications for the 16189.
Can I order the 16189 in custom quantities?
Yes, we sell hardware in various quantities from single units to bulk lots. The DRAG BRACE is available in: As Removed. Submit an RFQ for volume pricing or call (904) 998-9101 for quantity availability.
