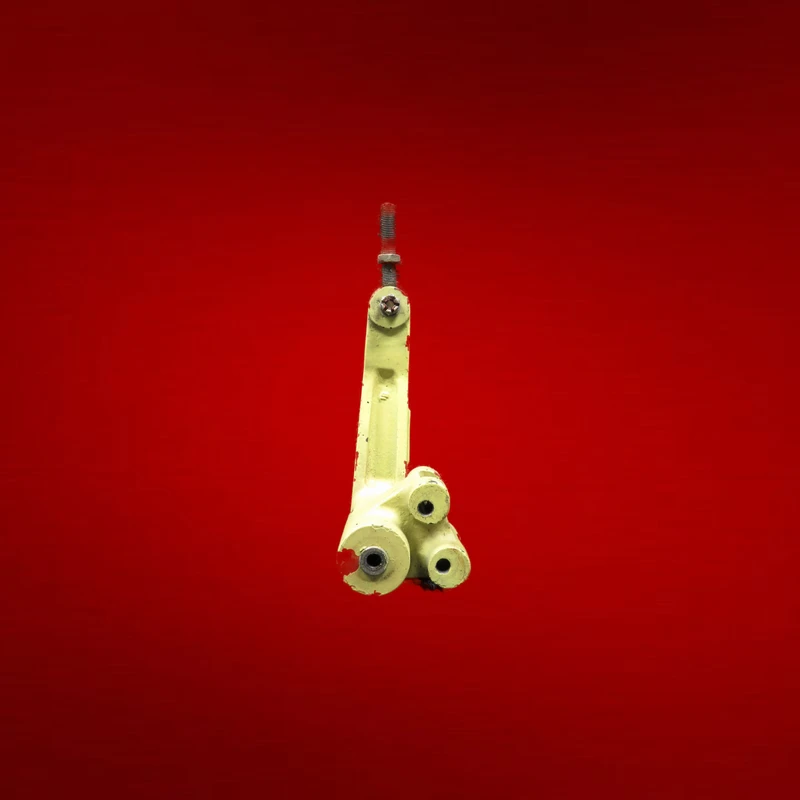

BELLCRANK (P/N 206-001-502-1) - New Surplus
P/N: 206-001-502-1
Category: Controls & Cables
This product requires a custom quote. Please contact our sales team for pricing information or submit an RFQ (Request for Quote).
Available Inventory
| Condition | Stock |
|---|---|
| New Surplus | 1 Available |
Product Description
Part 206-001-502-1 is a bellcrank assembly for aircraft control linkages. This mechanical component pivots to convert cable or push-pull motion, changing direction and mechanical advantage as needed for flight control systems. Commonly installed between aileron control cables and surface linkage, the bellcrank transfers pilot input through the airframe structure.
Steel or aluminum construction provides rigidity while maintaining light weight. Installation and rigging must follow the applicable aircraft maintenance manual and Illustrated Parts Catalog specifications to ensure proper control authority and travel limits.
Please note: Product descriptions are provided for informational purposes. Always refer to your aircraft's Illustrated Parts Catalog (IPC) to verify part compatibility and specifications.
Frequently Asked Questions
What is the BELLCRANK (P/N 206-001-502-1)?
Part 206-001-502-1 is a bellcrank assembly for aircraft control linkages. This mechanical component pivots to convert cable or push-pull motion, changing direction and mechanical advantage as needed for flight control systems.
Is the 206-001-502-1 a PMA or OEM part?
The BELLCRANK may be available as an OEM (Original Equipment Manufacturer) or PMA (Parts Manufacturer Approval) part depending on condition and source. Both carry FAA certification for airworthiness. Currently available in: New Surplus. Contact us for sourcing details.
Does the 206-001-502-1 include installation hardware?
Installation hardware requirements vary by application. Check your aircraft's Structural Repair Manual (SRM) or Illustrated Parts Catalog (IPC) for the complete installation kit requirements for the BELLCRANK. We stock related hardware and can help identify companion parts.
Can the 206-001-502-1 be shipped internationally?
Yes, we ship airframe components worldwide. International orders typically arrive within 3-14 business days depending on destination. Export documentation and customs forms are included. Contact us for international shipping quotes on the 206-001-502-1.
