PLUG ASSY,SHELL SIZE 23 (P/N 206305-1) - New Surplus

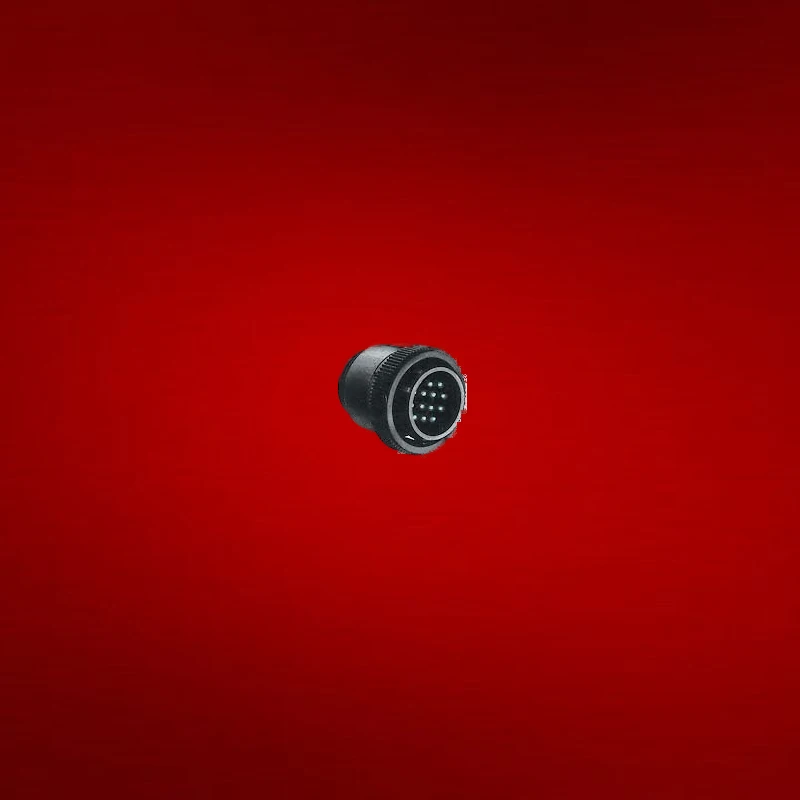

The 206305-1 is a shell size 23 circular plug assembly for aircraft electrical harnesses. This connector accepts crimp contacts for wire termination and integrates with MIL-DTL-38999 and AMP CPC connector families. Used in avionics and power distribution circuits where wire-to-wire or equipment disconnect connections are required.

Installation requires matched contacts, proper insert arrangement, and compatible backshell per connector specification. Verify keying alignment before final assembly to ensure correct mating with receptacle.

What is the PLUG ASSY,SHELL SIZE 23 (P/N 206305-1)?

The 206305-1 is a shell size 23 circular plug assembly for aircraft electrical harnesses. This connector accepts crimp contacts for wire termination and integrates with MIL-DTL-38999 and AMP CPC connector families.

Is the 206305-1 compatible with my aircraft's avionics suite?

Avionics compatibility depends on your aircraft model and existing installation. The PLUG ASSY,SHELL SIZE 23 is available in: New Surplus. We recommend checking your aircraft's wiring diagrams and STC documentation, or contact our avionics team for compatibility assistance.

Does the 206305-1 come with an 8130-3 airworthiness tag?

Availability of an FAA 8130-3 tag depends on the part condition. Overhauled and repaired units typically include 8130-3 documentation. As-removed units may include a removal tag with trace history. Contact us for specific documentation on the condition you need.

Do you offer bench testing for the 206305-1?

We can arrange bench testing through our network of FAA-certified repair stations. Call (904) 998-9101 for testing availability and turnaround times, or submit an RFQ with your specific requirements.
