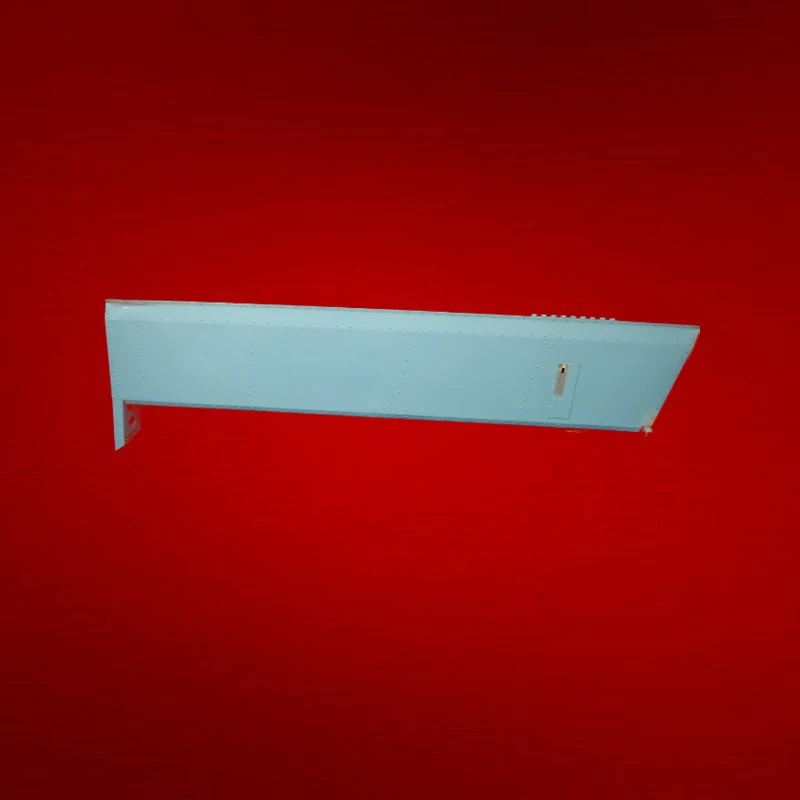

AILERON ASSEMBLY - LEFT (P/N 230015-503) - As Removed
P/N: 230015-503
Category: Flight Controls
This product requires a custom quote. Please contact our sales team for pricing information or submit an RFQ (Request for Quote).
Available Inventory
| Condition | Stock |
|---|---|
| As Removed | 3 Available |
Product Description
The 230015-503 is the left-hand aileron assembly for Mooney M20J aircraft. This aluminum control surface mounts at the wing trailing edge and provides primary roll control input through the lateral control system. The assembly connects to the aileron control cable and rigging system, enabling coordinated banking maneuvers during flight.
Installation requires verification against your aircraft's Illustrated Parts Catalog and compliance with Mooney maintenance manual specifications and FAA AC 43.13-1B guidance for proper alignment and cable tension.
Please note: Product descriptions are provided for informational purposes. Always refer to your aircraft's Illustrated Parts Catalog (IPC) to verify part compatibility and specifications.
Frequently Asked Questions
What is the AILERON ASSEMBLY - LEFT (P/N 230015-503)?
The 230015-503 is the left-hand aileron assembly for Mooney M20J aircraft. This aluminum control surface mounts at the wing trailing edge and provides primary roll control input through the lateral control system.
Is the 230015-503 a PMA or OEM part?
The AILERON ASSEMBLY - LEFT may be available as an OEM (Original Equipment Manufacturer) or PMA (Parts Manufacturer Approval) part depending on condition and source. Both carry FAA certification for airworthiness. Currently available in: As Removed. Contact us for sourcing details.
Does the 230015-503 include installation hardware?
Installation hardware requirements vary by application. Check your aircraft's Structural Repair Manual (SRM) or Illustrated Parts Catalog (IPC) for the complete installation kit requirements for the AILERON ASSEMBLY - LEFT. We stock related hardware and can help identify companion parts.
Can the 230015-503 be shipped internationally?
Yes, we ship airframe components worldwide. International orders typically arrive within 3-14 business days depending on destination. Export documentation and customs forms are included. Contact us for international shipping quotes on the 230015-503.
