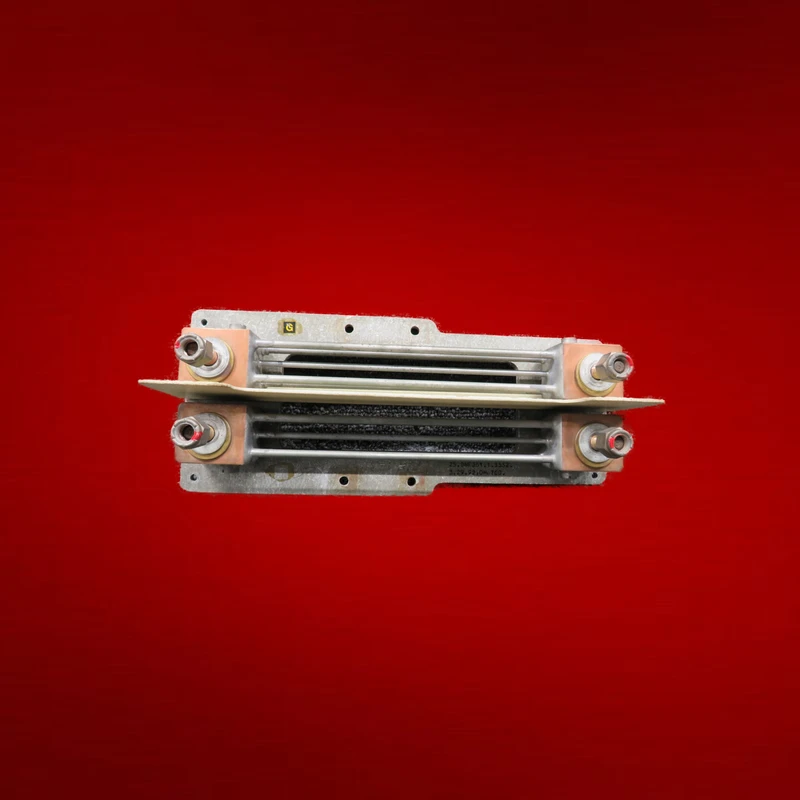

SHUNT ASSY (P/N 25-8nf361-1a) - Serviceable

The 25-8nf361-1a is a shunt assembly for aircraft DC electrical systems, providing precise current measurement through a low-resistance sensing element. Mounted in series on alternator or battery leads, it generates millivolt signals that drive ammeters and loadmeters for real-time charging system monitoring. The shunt's precision resistive element enables accurate current indication across the aircraft's electrical bus.

Installation requires correct polarity orientation and proper torque per your aircraft's maintenance manual specifications. Commonly used in general aviation and light transport aircraft charging systems.

What is the SHUNT ASSY (P/N 25-8nf361-1a)?

The 25-8nf361-1a is a shunt assembly for aircraft DC electrical systems, providing precise current measurement through a low-resistance sensing element. Mounted in series on alternator or battery leads, it generates millivolt signals that drive ammeters and loadmeters for real-time charging system monitoring.

Is the 25-8nf361-1a compatible with my aircraft's avionics suite?

Avionics compatibility depends on your aircraft model and existing installation. The SHUNT ASSY is available in: Serviceable. We recommend checking your aircraft's wiring diagrams and STC documentation, or contact our avionics team for compatibility assistance.

Does the 25-8nf361-1a come with an 8130-3 airworthiness tag?

Availability of an FAA 8130-3 tag depends on the part condition. Overhauled and repaired units typically include 8130-3 documentation. As-removed units may include a removal tag with trace history. Contact us for specific documentation on the condition you need.

Do you offer bench testing for the 25-8nf361-1a?

We can arrange bench testing through our network of FAA-certified repair stations. Call (904) 998-9101 for testing availability and turnaround times, or submit an RFQ with your specific requirements.
