LEAD-THRU INSULATOR (P/N 25arm300-20e-30) - New Surplus
P/N: 25arm300-20e-30
Category: Wiring, Cables & Harnesses
This product requires a custom quote. Please contact our sales team for pricing information or submit an RFQ (Request for Quote).
Available Inventory
| Condition | Stock |
|---|---|
| New Surplus | 4 Available |
Product Description

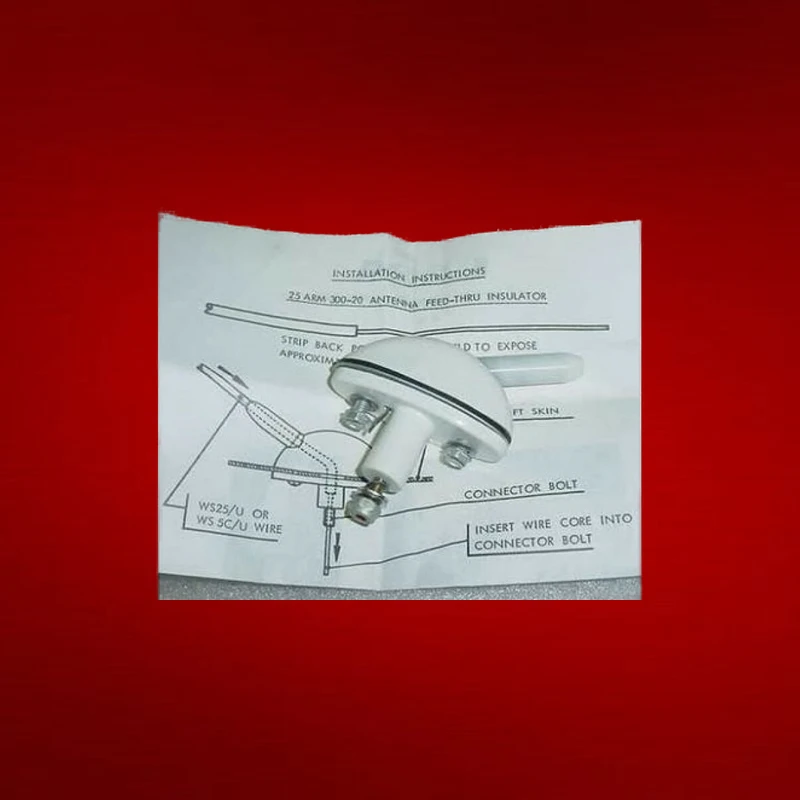

The 25arm300-20e-30 is a lead-thru insulator for HF long-wire antenna systems on aircraft. This feedthrough component routes and isolates the antenna conductor through the fuselage skin, connecting the exterior antenna wire to onboard HF radio equipment. The insulator maintains electrical isolation while allowing the antenna lead to pass through the aircraft structure without signal loss or interference.
Installation follows aircraft maintenance manual specifications and antenna manufacturer guidelines, with secure mounting to the fuselage. Used in general aviation and commercial aircraft equipped with high-frequency communication systems.
Please note: Product descriptions are provided for informational purposes. Always refer to your aircraft's Illustrated Parts Catalog (IPC) to verify part compatibility and specifications.
Frequently Asked Questions
What is the LEAD-THRU INSULATOR (P/N 25arm300-20e-30)?
The 25arm300-20e-30 is a lead-thru insulator for HF long-wire antenna systems on aircraft. This feedthrough component routes and isolates the antenna conductor through the fuselage skin, connecting the exterior antenna wire to onboard HF radio equipment.
Is the 25arm300-20e-30 compatible with my aircraft's avionics suite?
Avionics compatibility depends on your aircraft model and existing installation. The LEAD-THRU INSULATOR is available in: New Surplus. We recommend checking your aircraft's wiring diagrams and STC documentation, or contact our avionics team for compatibility assistance.
Does the 25arm300-20e-30 come with an 8130-3 airworthiness tag?
Availability of an FAA 8130-3 tag depends on the part condition. Overhauled and repaired units typically include 8130-3 documentation. As-removed units may include a removal tag with trace history. Contact us for specific documentation on the condition you need.
Do you offer bench testing for the 25arm300-20e-30?
We can arrange bench testing through our network of FAA-certified repair stations. Call (904) 998-9101 for testing availability and turnaround times, or submit an RFQ with your specific requirements.
