BREAKER PANEL, AFT (P/N 30090-004) - As Removed
P/N: 30090-004
Category: Circuit Breakers & Fuses
This product requires a custom quote. Please contact our sales team for pricing information or submit an RFQ (Request for Quote).
Available Inventory
| Condition | Stock |
|---|---|
| As Removed | 1 Available |
Product Description

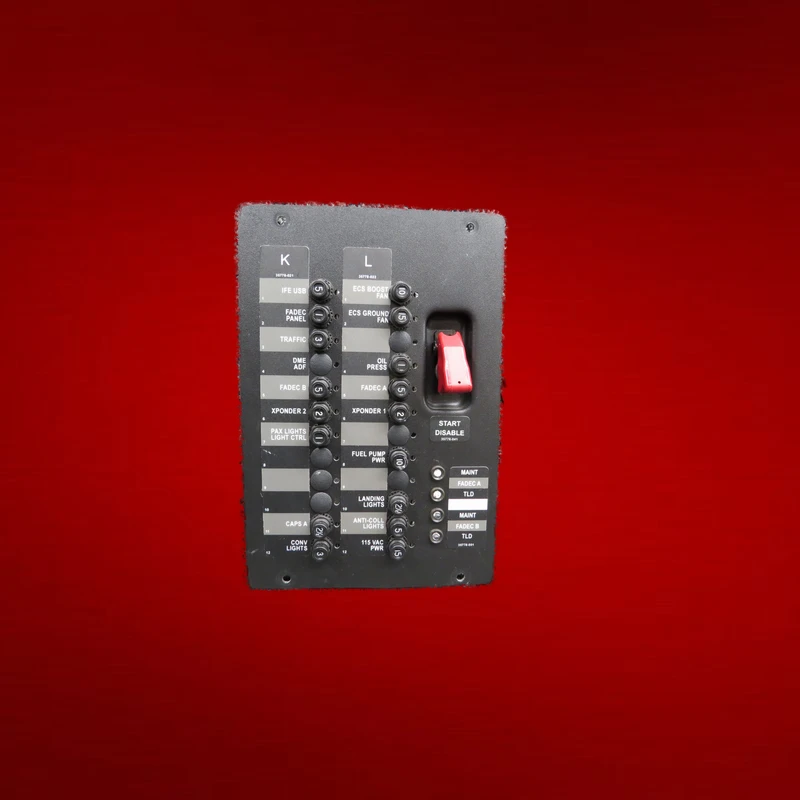

The 30090-004 is an aft breaker panel for aircraft electrical distribution systems. This aluminum-mounted assembly organizes and identifies circuit breakers serving avionics and aft equipment bay systems. The panel provides grouped mounting locations for protective devices in orderly rows, supporting clear labeling and easy access during maintenance and troubleshooting.
Installation follows aircraft maintenance manual procedures and FAA AC 43.13-1B wiring guidance. Verify compatibility with your aircraft's Illustrated Parts Catalog before installation.
Please note: Product descriptions are provided for informational purposes. Always refer to your aircraft's Illustrated Parts Catalog (IPC) to verify part compatibility and specifications.
Frequently Asked Questions
What is the BREAKER PANEL, AFT (P/N 30090-004)?
The 30090-004 is an aft breaker panel for aircraft electrical distribution systems. This aluminum-mounted assembly organizes and identifies circuit breakers serving avionics and aft equipment bay systems.
Is the 30090-004 compatible with my aircraft's avionics suite?
Avionics compatibility depends on your aircraft model and existing installation. The BREAKER PANEL, AFT is available in: As Removed. We recommend checking your aircraft's wiring diagrams and STC documentation, or contact our avionics team for compatibility assistance.
Does the 30090-004 come with an 8130-3 airworthiness tag?
Availability of an FAA 8130-3 tag depends on the part condition. Overhauled and repaired units typically include 8130-3 documentation. As-removed units may include a removal tag with trace history. Contact us for specific documentation on the condition you need.
Do you offer bench testing for the 30090-004?
We can arrange bench testing through our network of FAA-certified repair stations. Call (904) 998-9101 for testing availability and turnaround times, or submit an RFQ with your specific requirements.
