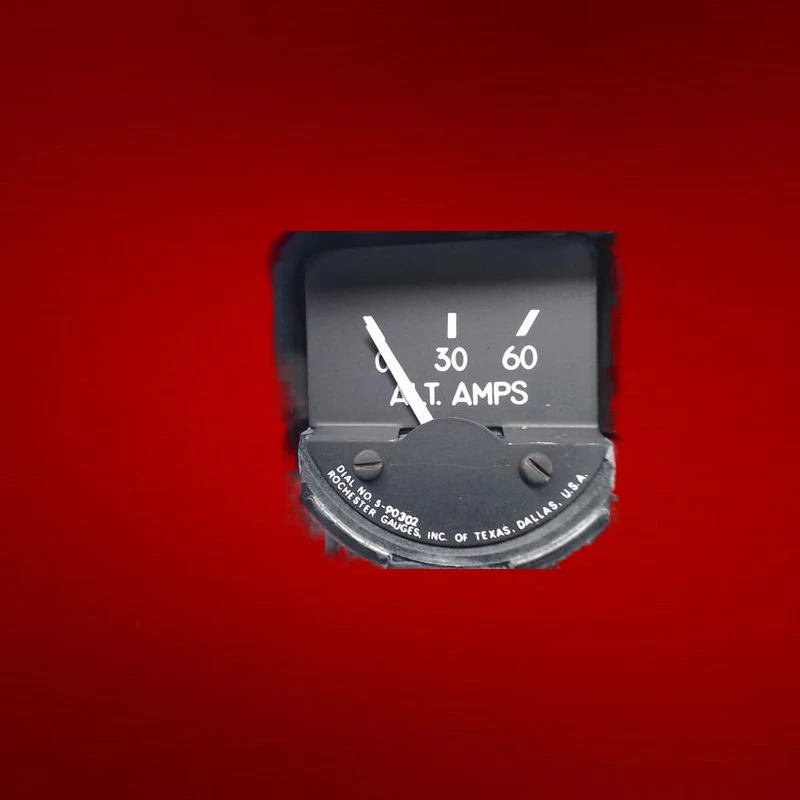

ALT. AMPS GAUGE (P/N 5-90302) - As Removed
P/N: 5-90302
Category: Gauges
This product requires a custom quote. Please contact our sales team for pricing information or submit an RFQ (Request for Quote).
Available Inventory
| Condition | Stock |
|---|---|
| As Removed | 1 Available |
Product Description
The 5-90302 is an alternator ammeter gauge for cockpit instrument panels. This dial indicator monitors alternator output and battery charging system load in real-time. The gauge connects to a calibrated shunt installed in the alternator or battery lead, providing accurate amperage readings during flight operations.
Panel-mounted with standard instrument cutout dimensions, it displays charging current flow to help pilots verify proper alternator function and battery charge state. Installation follows aircraft maintenance manual specifications and FAA AC 43.13-1B electrical practices for remote shunt wiring.
Please note: Product descriptions are provided for informational purposes. Always refer to your aircraft's Illustrated Parts Catalog (IPC) to verify part compatibility and specifications.
Frequently Asked Questions
What is the ALT. AMPS GAUGE (P/N 5-90302)?
The 5-90302 is an alternator ammeter gauge for cockpit instrument panels. This dial indicator monitors alternator output and battery charging system load in real-time.
Is the 5-90302 calibrated and ready to install?
Calibration status depends on the condition. Overhauled instruments come fully calibrated with an 8130-3 tag. The ALT. AMPS GAUGE is available in: As Removed. Contact us to confirm calibration status for your selected condition.
Can the 5-90302 be used as a direct replacement in my aircraft?
The ALT. AMPS GAUGE is designed as a form-fit-function replacement. Verify the part number against your aircraft's Illustrated Parts Catalog (IPC) and instrument panel layout to confirm compatibility before ordering.
Do you offer instrument exchange programs for the 5-90302?
Yes, we offer core exchange programs on select instruments. Send your unserviceable unit and receive a discount on the replacement. Call (904) 998-9101 or submit an RFQ to check exchange availability for the 5-90302.
