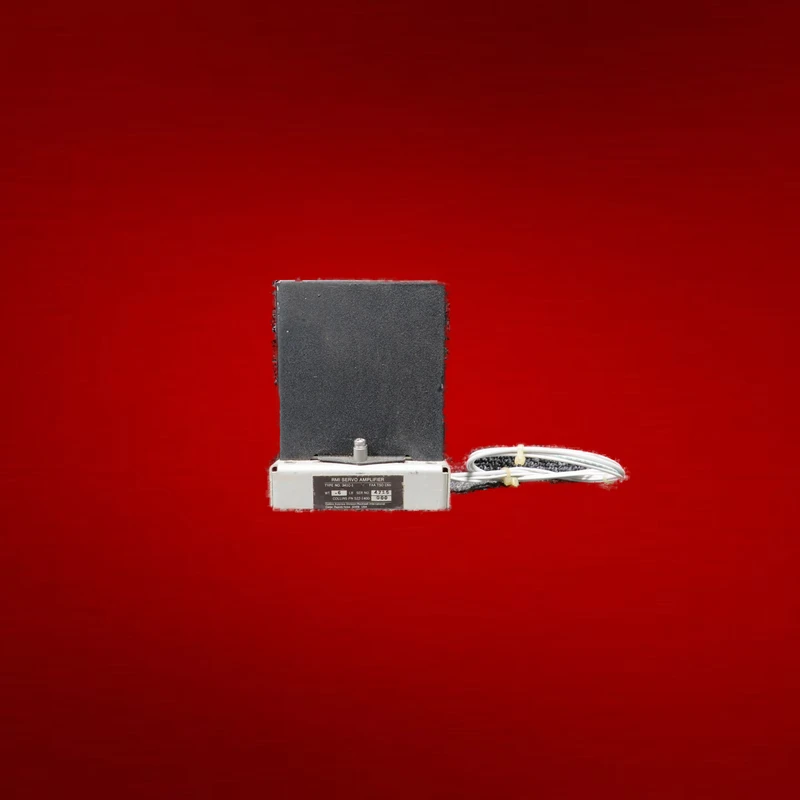

COMPASS CARD SERVO AMPLIFIER (P/N 522-1400-000) - As Removed
P/N: 522-1400-000
Category: Flight Instruments
This product requires a custom quote. Please contact our sales team for pricing information or submit an RFQ (Request for Quote).
Available Inventory
| Condition | Stock |
|---|---|
| As Removed | 1 Available |
Product Description
The 522-1400-000 is a Collins 341C-1 RMI servo amplifier that conditions error voltage from a control transformer to drive the compass card servo motor. This avionics component amplifies low-level signals and delivers servo power to position the magnetic heading display card in radio magnetic indicator systems. Used in PN-101 compass installations and secondary HSI applications on general aviation aircraft.
Installation and adjustment follow Collins avionics maintenance documentation specific to the RMI system.
Please note: Product descriptions are provided for informational purposes. Always refer to your aircraft's Illustrated Parts Catalog (IPC) to verify part compatibility and specifications.
Frequently Asked Questions
What is the COMPASS CARD SERVO AMPLIFIER (P/N 522-1400-000)?
The 522-1400-000 is a Collins 341C-1 RMI servo amplifier that conditions error voltage from a control transformer to drive the compass card servo motor. This avionics component amplifies low-level signals and delivers servo power to position the magnetic heading display card in radio magnetic indicator systems.
Is the 522-1400-000 calibrated and ready to install?
Calibration status depends on the condition. Overhauled instruments come fully calibrated with an 8130-3 tag. The COMPASS CARD SERVO AMPLIFIER is available in: As Removed. Contact us to confirm calibration status for your selected condition.
Can the 522-1400-000 be used as a direct replacement in my aircraft?
The COMPASS CARD SERVO AMPLIFIER is designed as a form-fit-function replacement. Verify the part number against your aircraft's Illustrated Parts Catalog (IPC) and instrument panel layout to confirm compatibility before ordering.
Do you offer instrument exchange programs for the 522-1400-000?
Yes, we offer core exchange programs on select instruments. Send your unserviceable unit and receive a discount on the replacement. Call (904) 998-9101 or submit an RFQ to check exchange availability for the 522-1400-000.
