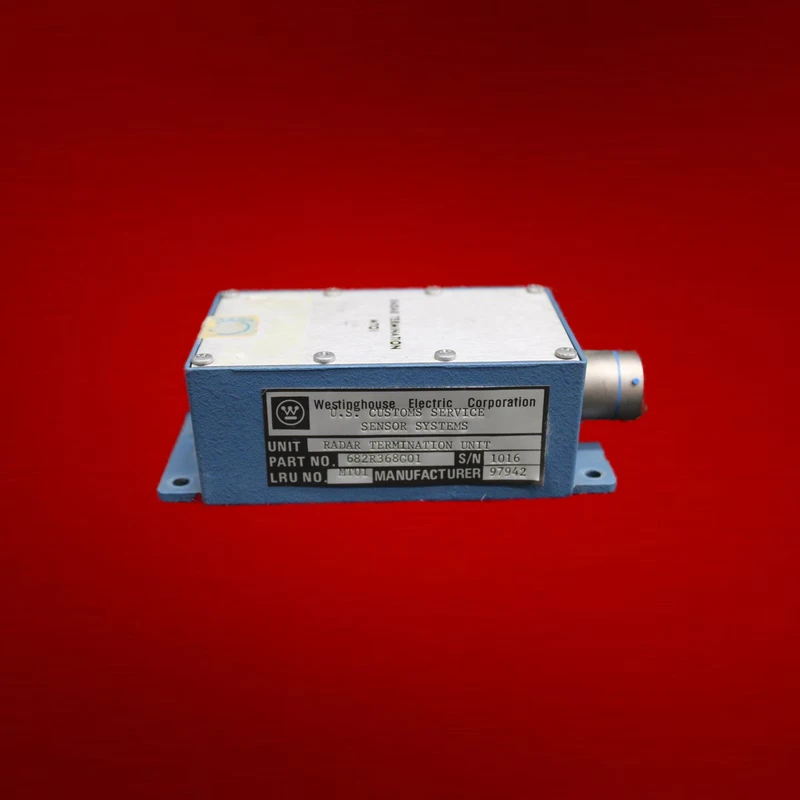

RADAR TERMINATION UNIT (P/N 682r368g01) - As Removed
P/N: 682r368g01
Category: Traffic, Terrain & Weather
This product requires a custom quote. Please contact our sales team for pricing information or submit an RFQ (Request for Quote).
Available Inventory
| Condition | Stock |
|---|---|
| As Removed | 1 Available |
Product Description
The 682r368g01 is a radar termination unit designed to terminate aircraft radar coax and waveguide lines. This component provides matched impedance to prevent RF reflections and protect radar equipment during testing, maintenance, or circuit isolation. Installed on weather radar or surveillance radar systems, the termination unit absorbs transmitted signals and prevents signal bounce-back that could damage sensitive avionics.
Installation follows EWIS practices per SAE AS50881 standards. Verify impedance and continuity after connection per the Aircraft Maintenance Manual.
Please note: Product descriptions are provided for informational purposes. Always refer to your aircraft's Illustrated Parts Catalog (IPC) to verify part compatibility and specifications.
Frequently Asked Questions
What is the RADAR TERMINATION UNIT (P/N 682r368g01)?
The 682r368g01 is a radar termination unit designed to terminate aircraft radar coax and waveguide lines. This component provides matched impedance to prevent RF reflections and protect radar equipment during testing, maintenance, or circuit isolation.
Is the 682r368g01 compatible with my aircraft's avionics suite?
Avionics compatibility depends on your aircraft model and existing installation. The RADAR TERMINATION UNIT is available in: As Removed. We recommend checking your aircraft's wiring diagrams and STC documentation, or contact our avionics team for compatibility assistance.
Does the 682r368g01 come with an 8130-3 airworthiness tag?
Availability of an FAA 8130-3 tag depends on the part condition. Overhauled and repaired units typically include 8130-3 documentation. As-removed units may include a removal tag with trace history. Contact us for specific documentation on the condition you need.
Do you offer bench testing for the 682r368g01?
We can arrange bench testing through our network of FAA-certified repair stations. Call (904) 998-9101 for testing availability and turnaround times, or submit an RFQ with your specific requirements.
