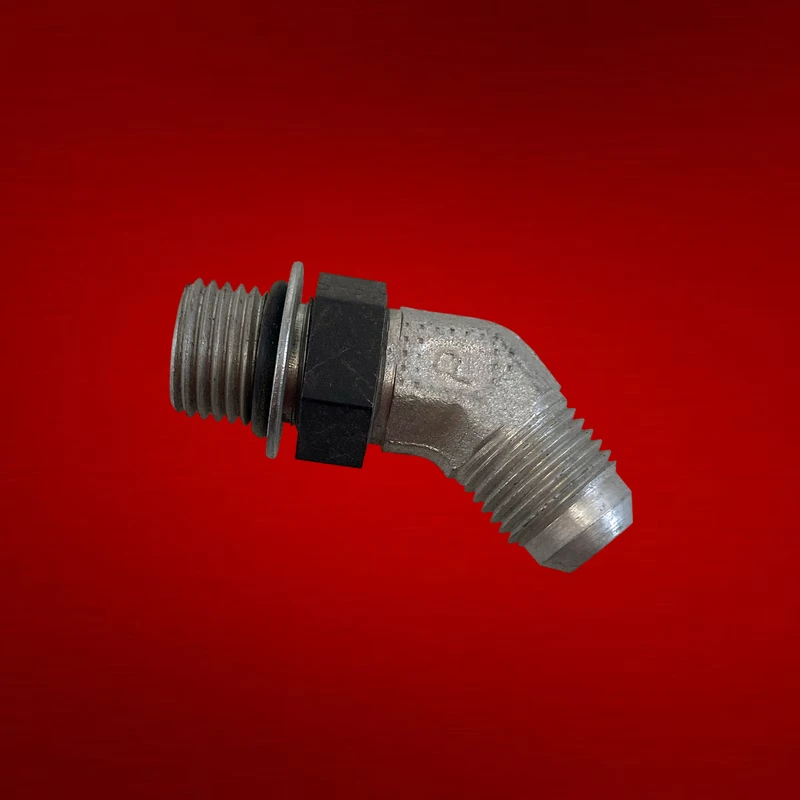

ELBOW (P/N 74070) - New Surplus, As Removed
P/N: 74070
Category: Fittings & Adapters
This product requires a custom quote. Please contact our sales team for pricing information or submit an RFQ (Request for Quote).
Available Inventory
| Condition | Stock |
|---|---|
| New Surplus | 1 Available |
| As Removed | 3 Available |
Product Description
Part 74070 is a metal elbow fitting that redirects fluid lines while maintaining sealed connections in aircraft plumbing systems. This 90-degree elbow conforms to AN/MS standards for flared tube-to-pipe interfaces, enabling fuel, hydraulic, and oil line routing in confined engine compartments and airframe spaces. The fitting's sealed joint design prevents leaks under system pressure and temperature cycling.
Installation requires verifying thread type, size, and material compatibility before torquing to manufacturer specification. Proper alignment ensures reliable performance in general aviation and commercial aircraft fluid systems.
Please note: Product descriptions are provided for informational purposes. Always refer to your aircraft's Illustrated Parts Catalog (IPC) to verify part compatibility and specifications.
Frequently Asked Questions
What is the ELBOW (P/N 74070)?
Part 74070 is a metal elbow fitting that redirects fluid lines while maintaining sealed connections in aircraft plumbing systems. This 90-degree elbow conforms to AN/MS standards for flared tube-to-pipe interfaces, enabling fuel, hydraulic, and oil line routing in confined engine compartments and airframe spaces.
Does the 74070 meet AN/MS/NAS aviation specifications?
Aircraft hardware is manufactured to military and aviation specifications. The ELBOW conforms to its applicable AN (Air Force-Navy), MS (Military Standard), or NAS (National Aerospace Standard) specification. Contact us for specific specification details.
What material is the 74070 manufactured from?
Aviation hardware is available in various materials including cadmium-plated steel, stainless steel, aluminum alloy, and titanium depending on the application. Contact us for material certification and specifications for the 74070.
Can I order the 74070 in custom quantities?
Yes, we sell hardware in various quantities from single units to bulk lots. The ELBOW is available in: New Surplus, As Removed. Submit an RFQ for volume pricing or call (904) 998-9101 for quantity availability.
