SWITCH (P/N 7509k5) - New Surplus
P/N: 7509k5
Category: Switches
This product requires a custom quote. Please contact our sales team for pricing information or submit an RFQ (Request for Quote).
Available Inventory
| Condition | Stock |
|---|---|
| New Surplus | 3 Available |
Product Description

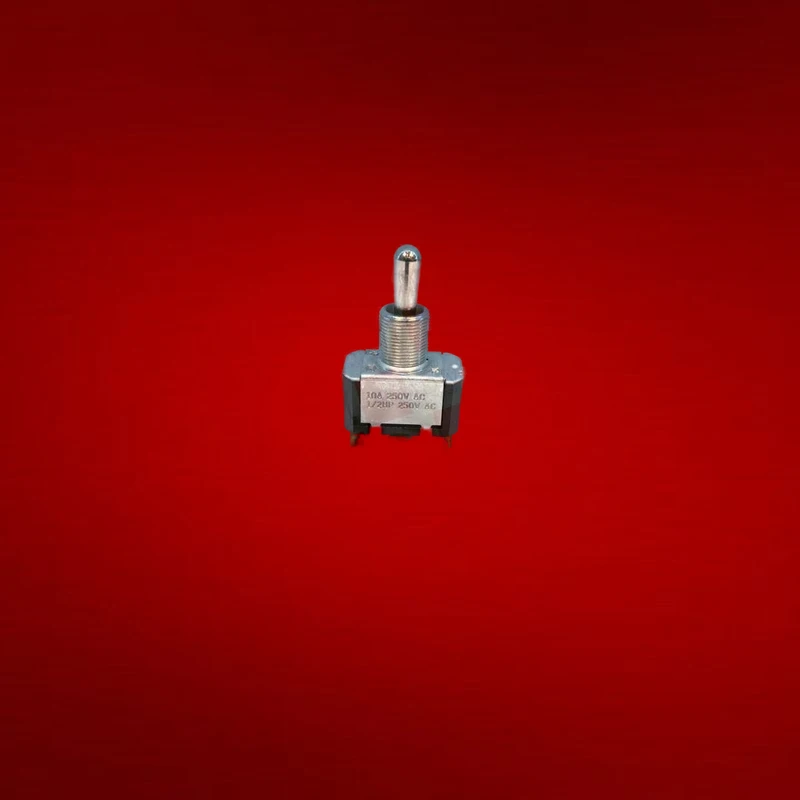

The 7509k5 is an Eaton 7500 Series SPDT toggle switch designed for aircraft electrical control panels. This momentary-on/off/momentary-on switch features screw terminals and a thermoset housing, rated for general electrical service with CSA and UL recognition. Mount directly to instrument panels where electrical control is needed.
Installation requires verification against the aircraft's wiring diagram and Illustrated Parts Catalog to ensure compatibility with system voltage and current ratings. Follow the maintenance manual for proper mounting orientation and terminal connections.
Please note: Product descriptions are provided for informational purposes. Always refer to your aircraft's Illustrated Parts Catalog (IPC) to verify part compatibility and specifications.
Frequently Asked Questions
What is the SWITCH (P/N 7509k5)?
The 7509k5 is an Eaton 7500 Series SPDT toggle switch designed for aircraft electrical control panels. This momentary-on/off/momentary-on switch features screw terminals and a thermoset housing, rated for general electrical service with CSA and UL recognition.
Is the 7509k5 compatible with my aircraft's avionics suite?
Avionics compatibility depends on your aircraft model and existing installation. The SWITCH is available in: New Surplus. We recommend checking your aircraft's wiring diagrams and STC documentation, or contact our avionics team for compatibility assistance.
Does the 7509k5 come with an 8130-3 airworthiness tag?
Availability of an FAA 8130-3 tag depends on the part condition. Overhauled and repaired units typically include 8130-3 documentation. As-removed units may include a removal tag with trace history. Contact us for specific documentation on the condition you need.
Do you offer bench testing for the 7509k5?
We can arrange bench testing through our network of FAA-certified repair stations. Call (904) 998-9101 for testing availability and turnaround times, or submit an RFQ with your specific requirements.
