BELLCRANK ASSEM-LH RUD (P/N 96-524010) - As Removed
P/N: 96-524010
Category: Controls & Cables
This product requires a custom quote. Please contact our sales team for pricing information or submit an RFQ (Request for Quote).
Available Inventory
| Condition | Stock |
|---|---|
| As Removed | 1 Available |
Product Description

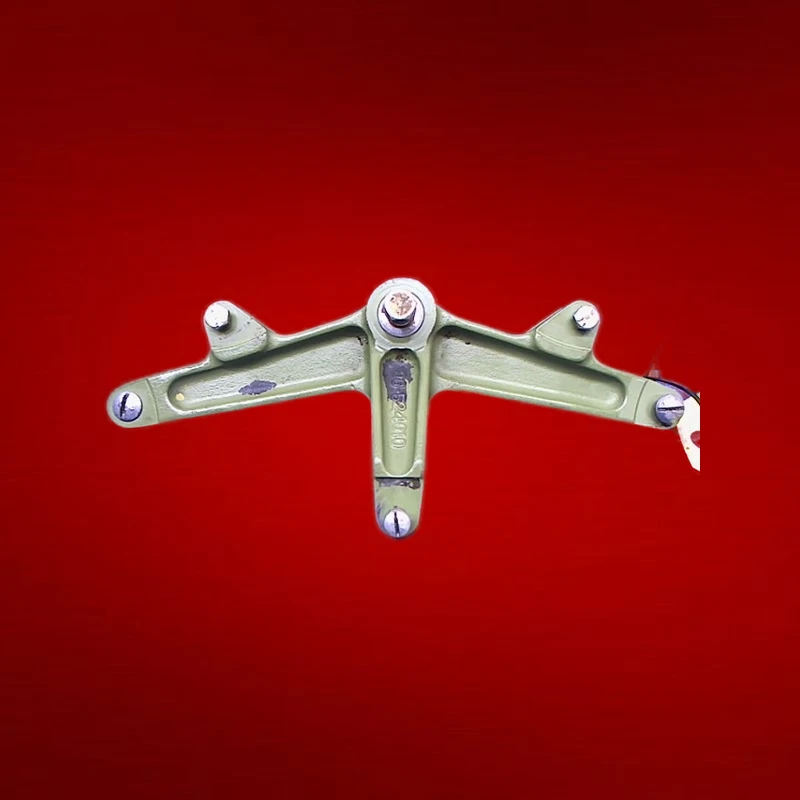

The 96-524010 is a left-hand rudder bellcrank assembly for Beechcraft Baron piston aircraft. This control linkage component converts rudder pedal input into directional control surface movement. The bellcrank pivots on a fixed mount point, transmitting mechanical force from the pedal cables to the rudder actuating system.
Manufactured from aluminum alloy for weight efficiency and corrosion resistance. Installation requires rigging per the aircraft maintenance manual and verification against your aircraft's Illustrated Parts Catalog. Proper alignment ensures smooth rudder response and prevents control binding.
Please note: Product descriptions are provided for informational purposes. Always refer to your aircraft's Illustrated Parts Catalog (IPC) to verify part compatibility and specifications.
Frequently Asked Questions
What is the BELLCRANK ASSEM-LH RUD (P/N 96-524010)?
The 96-524010 is a left-hand rudder bellcrank assembly for Beechcraft Baron piston aircraft. This control linkage component converts rudder pedal input into directional control surface movement.
Is the 96-524010 a PMA or OEM part?
The BELLCRANK ASSEM-LH RUD may be available as an OEM (Original Equipment Manufacturer) or PMA (Parts Manufacturer Approval) part depending on condition and source. Both carry FAA certification for airworthiness. Currently available in: As Removed. Contact us for sourcing details.
Does the 96-524010 include installation hardware?
Installation hardware requirements vary by application. Check your aircraft's Structural Repair Manual (SRM) or Illustrated Parts Catalog (IPC) for the complete installation kit requirements for the BELLCRANK ASSEM-LH RUD. We stock related hardware and can help identify companion parts.
Can the 96-524010 be shipped internationally?
Yes, we ship airframe components worldwide. International orders typically arrive within 3-14 business days depending on destination. Export documentation and customs forms are included. Contact us for international shipping quotes on the 96-524010.
