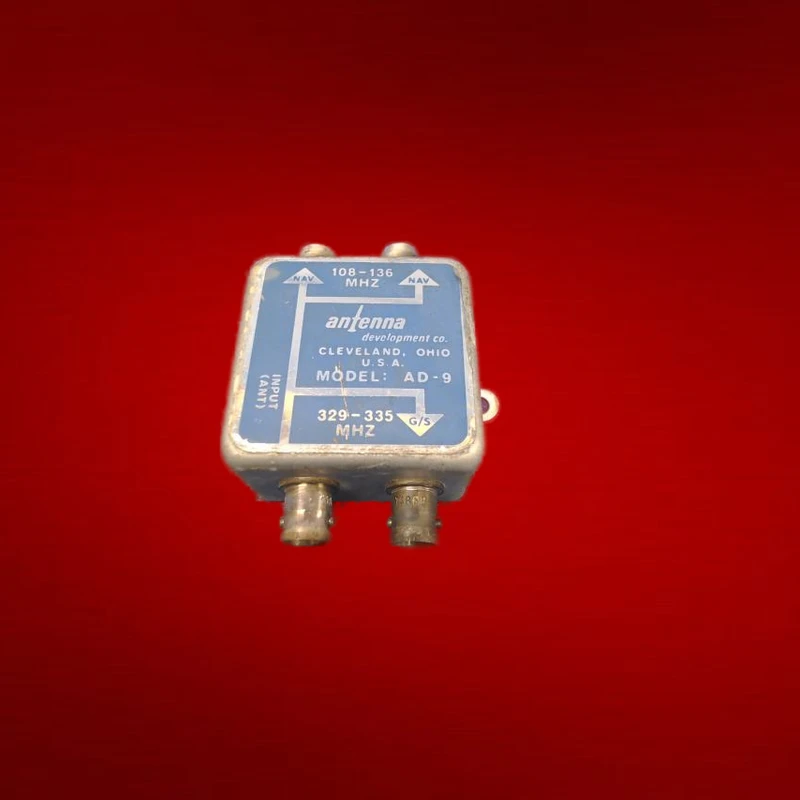

ANTENNA SPLITTER (P/N ad-9) - As Removed

The ad-9 is an antenna splitter that distributes RF signals from a single navigation antenna to multiple avionics receivers. This component connects a VOR/LOC/GS antenna to two NAV radios simultaneously, eliminating the need for manual antenna switching. The splitter maintains 50-ohm impedance paths to preserve signal integrity across navigation frequencies.

Installation requires certified coaxial cable with BNC terminations, routed per the avionics manufacturer's specifications. Commonly used in general aviation aircraft equipped with dual navigation systems sharing a single antenna installation.

What is the ANTENNA SPLITTER (P/N ad-9)?

The ad-9 is an antenna splitter that distributes RF signals from a single navigation antenna to multiple avionics receivers. This component connects a VOR/LOC/GS antenna to two NAV radios simultaneously, eliminating the need for manual antenna switching.

Is the ad-9 compatible with my aircraft's avionics suite?

Avionics compatibility depends on your aircraft model and existing installation. The ANTENNA SPLITTER is available in: As Removed. We recommend checking your aircraft's wiring diagrams and STC documentation, or contact our avionics team for compatibility assistance.

Does the ad-9 come with an 8130-3 airworthiness tag?

Availability of an FAA 8130-3 tag depends on the part condition. Overhauled and repaired units typically include 8130-3 documentation. As-removed units may include a removal tag with trace history. Contact us for specific documentation on the condition you need.

Do you offer bench testing for the ad-9?

We can arrange bench testing through our network of FAA-certified repair stations. Call (904) 998-9101 for testing availability and turnaround times, or submit an RFQ with your specific requirements.
