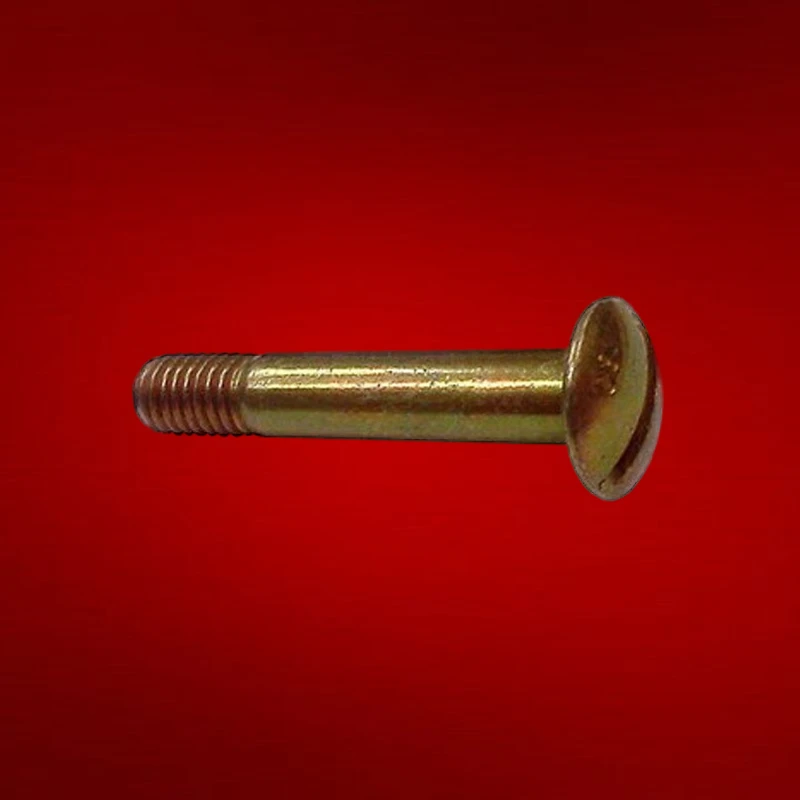

BOLT CLEVIS STEEL (P/N an23-25) - New Surplus
P/N: an23-25
Category: Bolts
This product requires a custom quote. Please contact our sales team for pricing information or submit an RFQ (Request for Quote).
Available Inventory
| Condition | Stock |
|---|---|
| New Surplus | 6 Available |
Product Description
The AN23-25 is a steel clevis bolt designed for shear-loaded pinned connections in aircraft control linkages and actuator assemblies. This AN-series fastener features a slotted brazier-type head and drilled shank for cotter pin retention. Installed in single-shear clevis configurations with a fork and tang, the bolt secures with an AN310 or AN320 castellated nut.
The drilled shank prevents rotation and provides positive locking when paired with a cotter pin, meeting Military Standard specifications for aerospace fastening. Follow the aircraft maintenance manual for proper installation torque and assembly procedures.
Please note: Product descriptions are provided for informational purposes. Always refer to your aircraft's Illustrated Parts Catalog (IPC) to verify part compatibility and specifications.
Frequently Asked Questions
What is the BOLT CLEVIS STEEL (P/N an23-25)?
The AN23-25 is a steel clevis bolt designed for shear-loaded pinned connections in aircraft control linkages and actuator assemblies. This AN-series fastener features a slotted brazier-type head and drilled shank for cotter pin retention.
What conditions is the an23-25 available in?
The an23-25 is currently available in the following conditions: New Surplus. Each condition reflects the part's maintenance history and certification status per FAA standards.
How do I get pricing for the an23-25?
The an23-25 requires a custom quote. Submit a Request for Quote (RFQ) through our website or call our sales team at (904) 998-9101 for immediate pricing assistance.
Do you offer expedited shipping for the an23-25?
Yes, we offer same-day processing on in-stock items and provide 24/7 AOG (Aircraft on Ground) support for urgent needs. Standard, expedited, and overnight shipping options are available.
