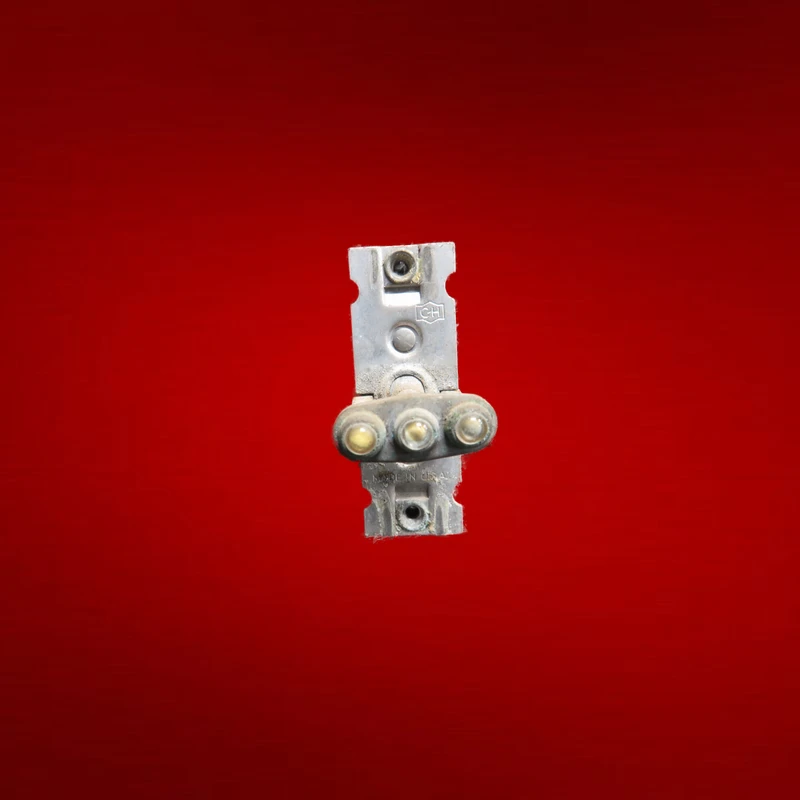

SWITCH (P/N an3022-15b) - As Removed
P/N: an3022-15b
Category: Switches
This product requires a custom quote. Please contact our sales team for pricing information or submit an RFQ (Request for Quote).
Available Inventory
| Condition | Stock |
|---|---|
| As Removed | 2 Available |
Product Description
The AN3022-15B is a three-position toggle switch conforming to AN3022 series specifications for aircraft panel mounting. This electrical control switch features a three-hole mounting pattern and handles circuit switching for cockpit lighting and control systems. The switch mounts directly into a standard three-hole panel cutout, providing reliable on-off-on functionality.
Cross-referenced with MS25102 family designations, it meets military aerospace standards for durability and performance. Installation requires verification of circuit configuration and mounting procedures per the aircraft maintenance manual and applicable AN/MS documentation.
Please note: Product descriptions are provided for informational purposes. Always refer to your aircraft's Illustrated Parts Catalog (IPC) to verify part compatibility and specifications.
Frequently Asked Questions
What is the SWITCH (P/N an3022-15b)?
The AN3022-15B is a three-position toggle switch conforming to AN3022 series specifications for aircraft panel mounting. This electrical control switch features a three-hole mounting pattern and handles circuit switching for cockpit lighting and control systems.
Is the an3022-15b compatible with my aircraft's avionics suite?
Avionics compatibility depends on your aircraft model and existing installation. The SWITCH is available in: As Removed. We recommend checking your aircraft's wiring diagrams and STC documentation, or contact our avionics team for compatibility assistance.
Does the an3022-15b come with an 8130-3 airworthiness tag?
Availability of an FAA 8130-3 tag depends on the part condition. Overhauled and repaired units typically include 8130-3 documentation. As-removed units may include a removal tag with trace history. Contact us for specific documentation on the condition you need.
Do you offer bench testing for the an3022-15b?
We can arrange bench testing through our network of FAA-certified repair stations. Call (904) 998-9101 for testing availability and turnaround times, or submit an RFQ with your specific requirements.
