NIPPLE (P/N an816-3d) - New Surplus
P/N: an816-3d
Category: Fittings & Adapters
This product requires a custom quote. Please contact our sales team for pricing information or submit an RFQ (Request for Quote).
Available Inventory
| Condition | Stock |
|---|---|
| New Surplus | 1 Available |
Product Description

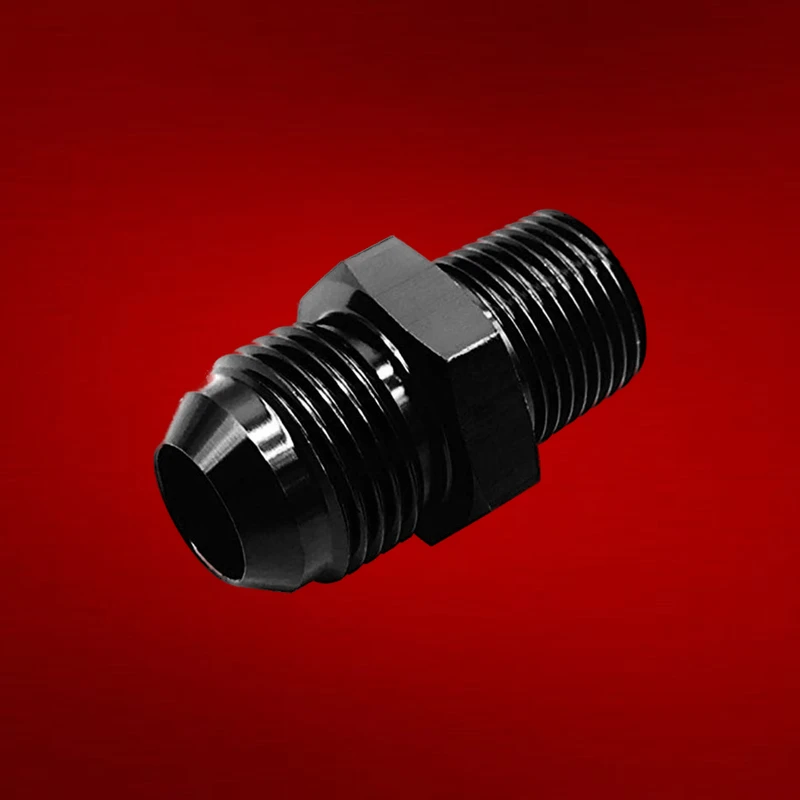

The AN816-3D is an aluminum straight nipple adapter that joins 37° flared tubing to pipe-thread ports in aircraft fluid systems. This AN standard component connects flared aluminum fuel lines to NPT (National Pipe Thread) ports commonly found on engine fuel system components. Installation requires an AN818 nut and AN819 sleeve, torqued per FAA AC 43.13-1B specifications.
The adapter maintains pressure integrity in fuel delivery circuits on general aviation and corporate aircraft, where reliable tube-to-port connections prevent leaks during operation.
Please note: Product descriptions are provided for informational purposes. Always refer to your aircraft's Illustrated Parts Catalog (IPC) to verify part compatibility and specifications.
Frequently Asked Questions
What is the NIPPLE (P/N an816-3d)?
The AN816-3D is an aluminum straight nipple adapter that joins 37° flared tubing to pipe-thread ports in aircraft fluid systems. This AN standard component connects flared aluminum fuel lines to NPT (National Pipe Thread) ports commonly found on engine fuel system components.
Does the an816-3d meet AN/MS/NAS aviation specifications?
Aircraft hardware is manufactured to military and aviation specifications. The NIPPLE conforms to its applicable AN (Air Force-Navy), MS (Military Standard), or NAS (National Aerospace Standard) specification. Contact us for specific specification details.
What material is the an816-3d manufactured from?
Aviation hardware is available in various materials including cadmium-plated steel, stainless steel, aluminum alloy, and titanium depending on the application. Contact us for material certification and specifications for the an816-3d.
Can I order the an816-3d in custom quantities?
Yes, we sell hardware in various quantities from single units to bulk lots. The NIPPLE is available in: New Surplus. Submit an RFQ for volume pricing or call (904) 998-9101 for quantity availability.
