ELBOW (P/N an821-5d) - New Surplus
P/N: an821-5d
Category: Fittings & Adapters
This product requires a custom quote. Please contact our sales team for pricing information or submit an RFQ (Request for Quote).
Available Inventory
| Condition | Stock |
|---|---|
| New Surplus | 19 Available |
Product Description

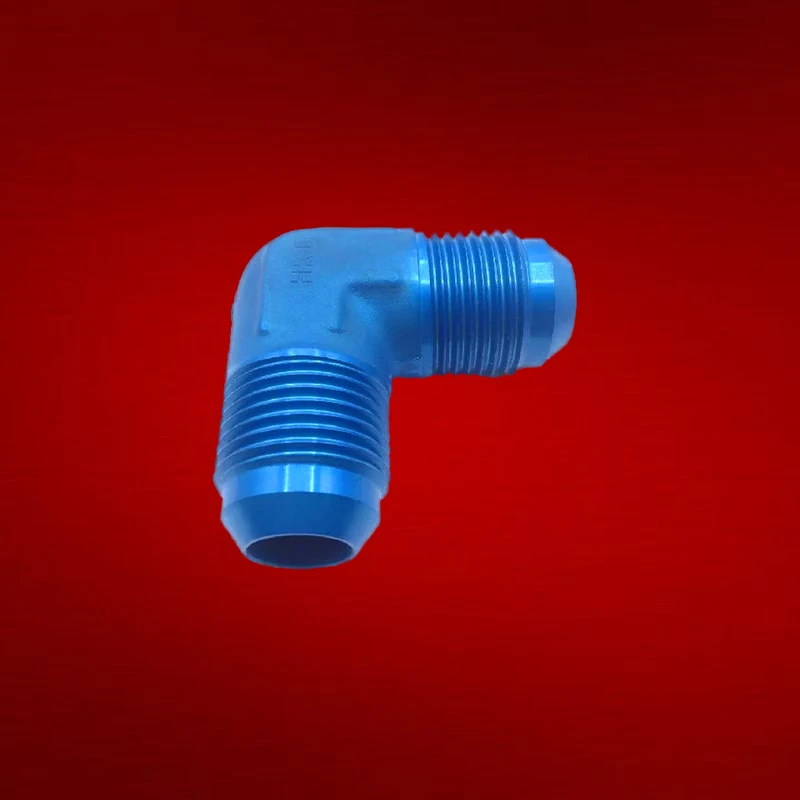

The AN821-5D is a 90-degree, 37-degree flared tube elbow for aircraft hydraulic systems. This aluminum alloy fitting connects 5/16-inch diameter tubes at right angles, enabling efficient line routing in confined engine and fuselage spaces. Installation requires pairing with AN818 nut and AN819 sleeve components, torqued per aircraft maintenance manual specifications.
The AN821 standard defines the flare configuration and connection geometry. Now superseded by SAE AS1034, though AN821-5D remains in service across general and corporate aviation fleets for hydraulic circuit modifications and repairs.
Please note: Product descriptions are provided for informational purposes. Always refer to your aircraft's Illustrated Parts Catalog (IPC) to verify part compatibility and specifications.
Frequently Asked Questions
What is the ELBOW (P/N an821-5d)?
The AN821-5D is a 90-degree, 37-degree flared tube elbow for aircraft hydraulic systems. This aluminum alloy fitting connects 5/16-inch diameter tubes at right angles, enabling efficient line routing in confined engine and fuselage spaces.
Does the an821-5d meet AN/MS/NAS aviation specifications?
Aircraft hardware is manufactured to military and aviation specifications. The ELBOW conforms to its applicable AN (Air Force-Navy), MS (Military Standard), or NAS (National Aerospace Standard) specification. Contact us for specific specification details.
What material is the an821-5d manufactured from?
Aviation hardware is available in various materials including cadmium-plated steel, stainless steel, aluminum alloy, and titanium depending on the application. Contact us for material certification and specifications for the an821-5d.
Can I order the an821-5d in custom quantities?
Yes, we sell hardware in various quantities from single units to bulk lots. The ELBOW is available in: New Surplus. Submit an RFQ for volume pricing or call (904) 998-9101 for quantity availability.
