ELBOW (P/N an823-3d) - New Surplus
P/N: an823-3d
Category: Fittings & Adapters
This product requires a custom quote. Please contact our sales team for pricing information or submit an RFQ (Request for Quote).
Available Inventory
| Condition | Stock |
|---|---|
| New Surplus | 5 Available |
Product Description

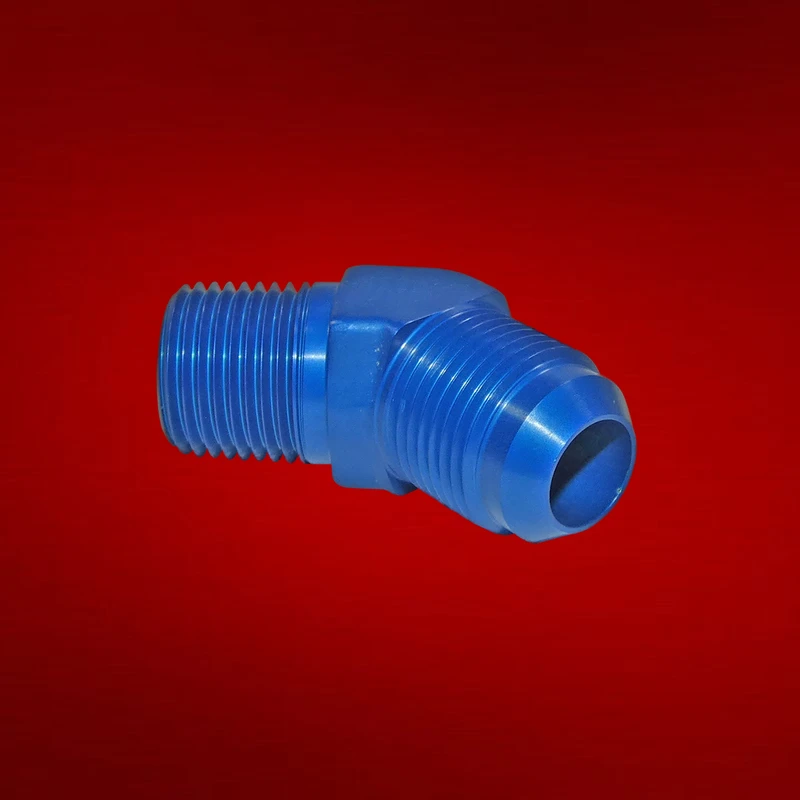

The AN823-3D is a 45-degree aluminum elbow fitting that connects a 37° flared tube to a pipe-thread port in aircraft fluid systems. This flared-to-pipe adapter enables directional changes in fuel, hydraulic, and oil lines where space or routing requirements demand a 45-degree angle. The aluminum construction (D suffix) provides lightweight corrosion resistance typical of general aviation applications.
Installation requires proper flare seating, thread engagement per aircraft maintenance manual specifications, and approved sealant when specified. Commonly superseded by MS20823 and SAE AS5196 standards.
Please note: Product descriptions are provided for informational purposes. Always refer to your aircraft's Illustrated Parts Catalog (IPC) to verify part compatibility and specifications.
Frequently Asked Questions
What is the ELBOW (P/N an823-3d)?
The AN823-3D is a 45-degree aluminum elbow fitting that connects a 37° flared tube to a pipe-thread port in aircraft fluid systems. This flared-to-pipe adapter enables directional changes in fuel, hydraulic, and oil lines where space or routing requirements demand a 45-degree angle.
Does the an823-3d meet AN/MS/NAS aviation specifications?
Aircraft hardware is manufactured to military and aviation specifications. The ELBOW conforms to its applicable AN (Air Force-Navy), MS (Military Standard), or NAS (National Aerospace Standard) specification. Contact us for specific specification details.
What material is the an823-3d manufactured from?
Aviation hardware is available in various materials including cadmium-plated steel, stainless steel, aluminum alloy, and titanium depending on the application. Contact us for material certification and specifications for the an823-3d.
Can I order the an823-3d in custom quantities?
Yes, we sell hardware in various quantities from single units to bulk lots. The ELBOW is available in: New Surplus. Submit an RFQ for volume pricing or call (904) 998-9101 for quantity availability.
