TEE (P/N an824-3) - As Removed
P/N: an824-3
Category: Fittings & Adapters
This product requires a custom quote. Please contact our sales team for pricing information or submit an RFQ (Request for Quote).
Available Inventory
| Condition | Stock |
|---|---|
| As Removed | 1 Available |
Product Description

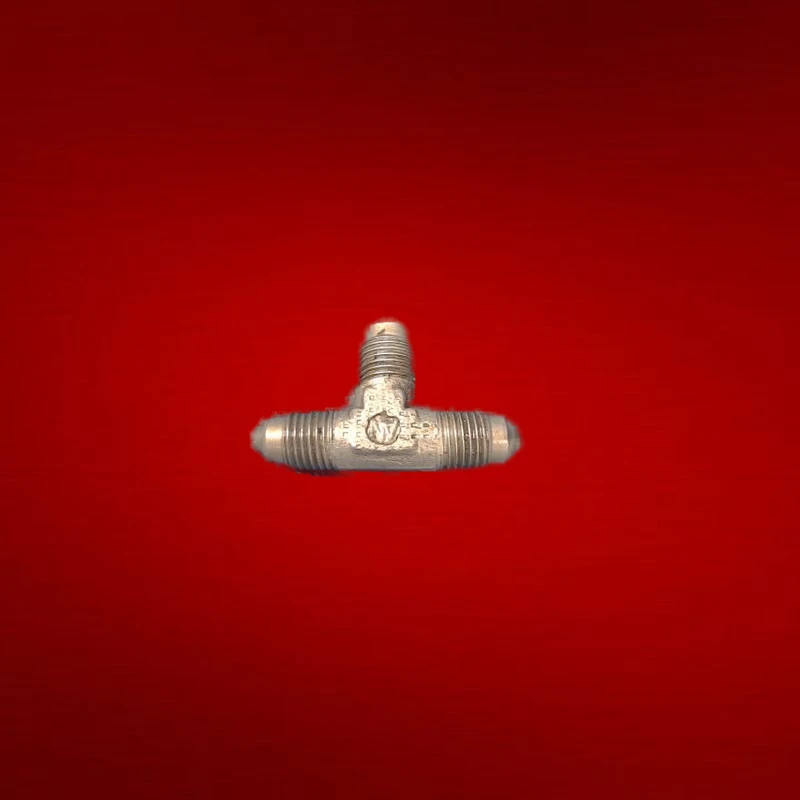

The AN824-3 is a flared-tube tee fitting designed for 3/16-inch aircraft fluid lines with 37° flared connections. This metal tee branches a single fluid line into two directions, creating a three-way junction in fuel, hydraulic, oil, and pneumatic systems. Installation requires AN818 nuts and AN819 sleeves on each tube end, with torque and leak-check per aircraft maintenance data.
Manufactured to AS specification for reliable metal-to-metal sealing in general aviation and commercial aircraft fluid systems.
Please note: Product descriptions are provided for informational purposes. Always refer to your aircraft's Illustrated Parts Catalog (IPC) to verify part compatibility and specifications.
Frequently Asked Questions
What is the TEE (P/N an824-3)?
The AN824-3 is a flared-tube tee fitting designed for 3/16-inch aircraft fluid lines with 37° flared connections. This metal tee branches a single fluid line into two directions, creating a three-way junction in fuel, hydraulic, oil, and pneumatic systems.
Does the an824-3 meet AN/MS/NAS aviation specifications?
Aircraft hardware is manufactured to military and aviation specifications. The TEE conforms to its applicable AN (Air Force-Navy), MS (Military Standard), or NAS (National Aerospace Standard) specification. Contact us for specific specification details.
What material is the an824-3 manufactured from?
Aviation hardware is available in various materials including cadmium-plated steel, stainless steel, aluminum alloy, and titanium depending on the application. Contact us for material certification and specifications for the an824-3.
Can I order the an824-3 in custom quantities?
Yes, we sell hardware in various quantities from single units to bulk lots. The TEE is available in: As Removed. Submit an RFQ for volume pricing or call (904) 998-9101 for quantity availability.
