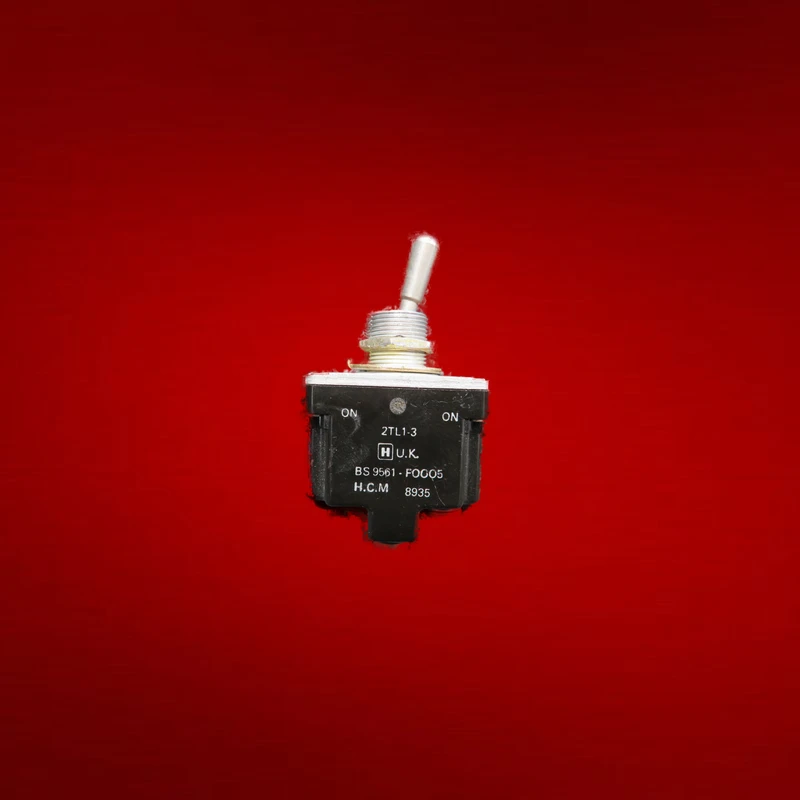

MICROSWITCH (P/N bs9561-f0005) - As Removed
P/N: bs9561-f0005
Category: Switches
This product requires a custom quote. Please contact our sales team for pricing information or submit an RFQ (Request for Quote).
Available Inventory
| Condition | Stock |
|---|---|
| As Removed | 2 Available |
Product Description
The bs9561-f0005 is a snap-action microswitch for aircraft electromechanical position and limit sensing. This switch provides reliable actuation in landing gear systems, door mechanisms, and control surface applications. Built to MIL-PRF-8805 standards for sealing and environmental performance, it operates in harsh cockpit and airframe conditions.
The microswitch mounts to brackets or linkages via standard fasteners and requires wiring per the aircraft maintenance manual. Verify actuation travel and electrical rating during installation to ensure proper system function.
Please note: Product descriptions are provided for informational purposes. Always refer to your aircraft's Illustrated Parts Catalog (IPC) to verify part compatibility and specifications.
Frequently Asked Questions
What is the MICROSWITCH (P/N bs9561-f0005)?
The bs9561-f0005 is a snap-action microswitch for aircraft electromechanical position and limit sensing. This switch provides reliable actuation in landing gear systems, door mechanisms, and control surface applications.
Is the bs9561-f0005 compatible with my aircraft's avionics suite?
Avionics compatibility depends on your aircraft model and existing installation. The MICROSWITCH is available in: As Removed. We recommend checking your aircraft's wiring diagrams and STC documentation, or contact our avionics team for compatibility assistance.
Does the bs9561-f0005 come with an 8130-3 airworthiness tag?
Availability of an FAA 8130-3 tag depends on the part condition. Overhauled and repaired units typically include 8130-3 documentation. As-removed units may include a removal tag with trace history. Contact us for specific documentation on the condition you need.
Do you offer bench testing for the bs9561-f0005?
We can arrange bench testing through our network of FAA-certified repair stations. Call (904) 998-9101 for testing availability and turnaround times, or submit an RFQ with your specific requirements.
