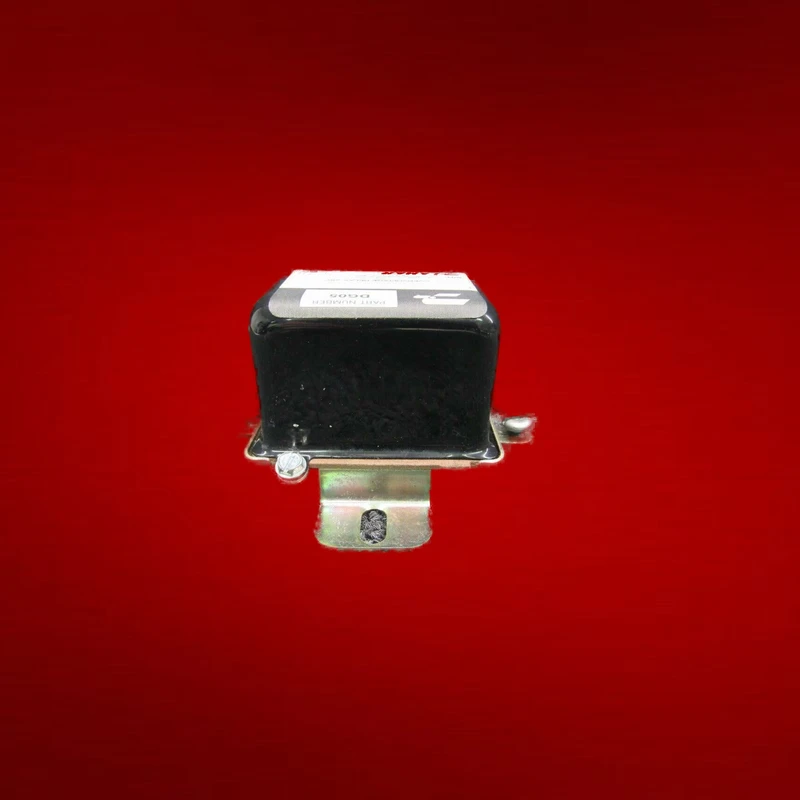

OVERVOLTAGE CONTROL BOX (P/N dg05) - As Removed
P/N: dg05
Category: Electrical & Electronic Components
This product requires a custom quote. Please contact our sales team for pricing information or submit an RFQ (Request for Quote).
Available Inventory
| Condition | Stock |
|---|---|
| As Removed | 1 Available |
Product Description
The dg05 is an overvoltage control box that protects aircraft DC electrical systems by monitoring bus voltage and interrupting alternator or generator field output when voltage exceeds safe limits. This component sits between the power source, voltage regulator, and main bus to prevent avionics damage from overvoltage conditions. Installation follows the aircraft wiring diagram and maintenance manual specifications, with electrical compatibility verification required before integration.
Mounted in the electrical bay per FAA AC 43.13-1B accepted practices.
Please note: Product descriptions are provided for informational purposes. Always refer to your aircraft's Illustrated Parts Catalog (IPC) to verify part compatibility and specifications.
Frequently Asked Questions
What is the OVERVOLTAGE CONTROL BOX (P/N dg05)?
The dg05 is an overvoltage control box that protects aircraft DC electrical systems by monitoring bus voltage and interrupting alternator or generator field output when voltage exceeds safe limits. This component sits between the power source, voltage regulator, and main bus to prevent avionics damage from overvoltage conditions.
Is the dg05 compatible with my aircraft's avionics suite?
Avionics compatibility depends on your aircraft model and existing installation. The OVERVOLTAGE CONTROL BOX is available in: As Removed. We recommend checking your aircraft's wiring diagrams and STC documentation, or contact our avionics team for compatibility assistance.
Does the dg05 come with an 8130-3 airworthiness tag?
Availability of an FAA 8130-3 tag depends on the part condition. Overhauled and repaired units typically include 8130-3 documentation. As-removed units may include a removal tag with trace history. Contact us for specific documentation on the condition you need.
Do you offer bench testing for the dg05?
We can arrange bench testing through our network of FAA-certified repair stations. Call (904) 998-9101 for testing availability and turnaround times, or submit an RFQ with your specific requirements.
