PIN-RIVET,THREADED (P/N hl20pb5-4) - New
P/N: hl20pb5-4
Category: Fasteners & Hardware
This product requires a custom quote. Please contact our sales team for pricing information or submit an RFQ (Request for Quote).
Available Inventory
| Condition | Stock |
|---|---|
| New | 7 Available |
Product Description

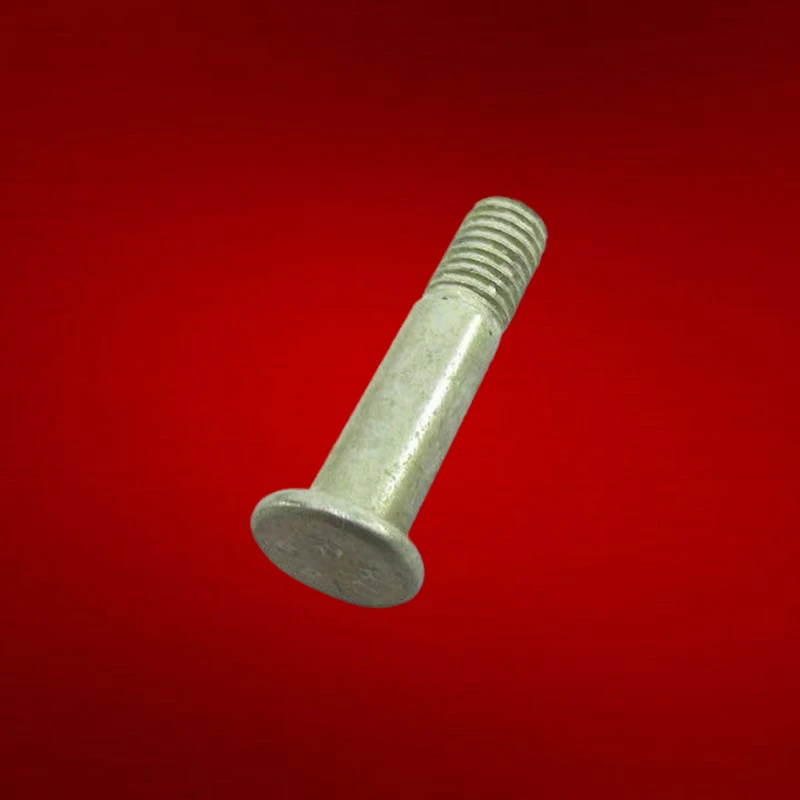

The hl20pb5-4 is a Hi-Lok threaded pin-rivet featuring a steel pin with UNJ Class 3A threads for permanent structural fastening. This aerospace-grade fastener installs with a matching Hi-Lok collar using torque-controlled assembly to create reliable, vibration-resistant joints. Used in airframe structural applications where high-strength, load-bearing connections are required.
Installation requires selecting the correct grip length and applying specified torque per aircraft Structural Repair Manual or engineering documentation. The threaded design allows controlled clamping force and repeatable assembly in critical structural repairs and assembly operations.
Please note: Product descriptions are provided for informational purposes. Always refer to your aircraft's Illustrated Parts Catalog (IPC) to verify part compatibility and specifications.
Frequently Asked Questions
What is the PIN-RIVET,THREADED (P/N hl20pb5-4)?
The hl20pb5-4 is a Hi-Lok threaded pin-rivet featuring a steel pin with UNJ Class 3A threads for permanent structural fastening. This aerospace-grade fastener installs with a matching Hi-Lok collar using torque-controlled assembly to create reliable, vibration-resistant joints.
Does the hl20pb5-4 meet AN/MS/NAS aviation specifications?
Aircraft hardware is manufactured to military and aviation specifications. The PIN-RIVET,THREADED conforms to its applicable AN (Air Force-Navy), MS (Military Standard), or NAS (National Aerospace Standard) specification. Contact us for specific specification details.
What material is the hl20pb5-4 manufactured from?
Aviation hardware is available in various materials including cadmium-plated steel, stainless steel, aluminum alloy, and titanium depending on the application. Contact us for material certification and specifications for the hl20pb5-4.
Can I order the hl20pb5-4 in custom quantities?
Yes, we sell hardware in various quantities from single units to bulk lots. The PIN-RIVET,THREADED is available in: New. Submit an RFQ for volume pricing or call (904) 998-9101 for quantity availability.
