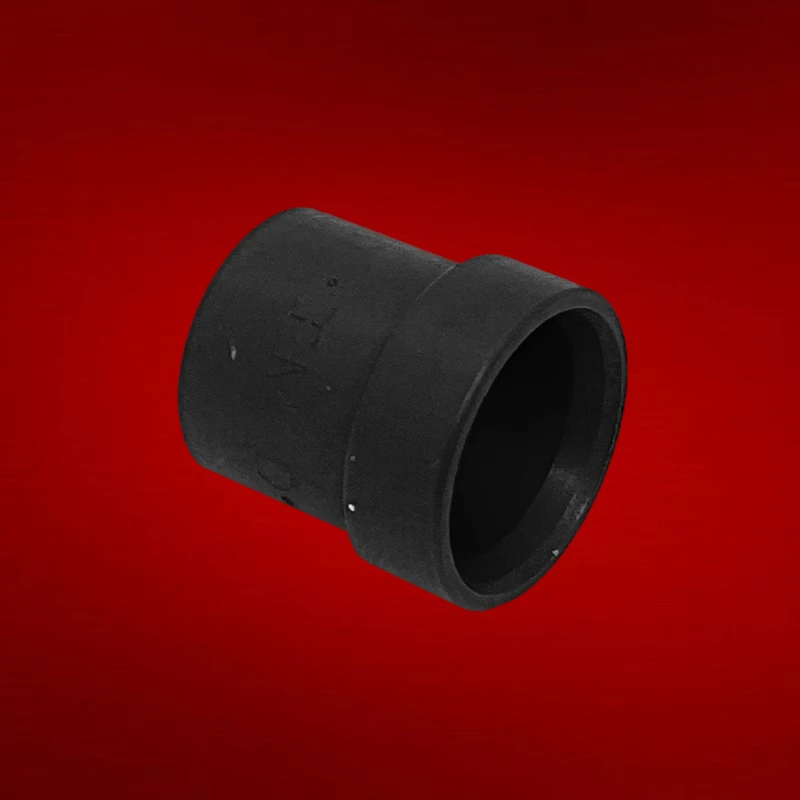

SLEEVE,FLARED,TUBE FTG (P/N ms20819-4j) - New Surplus
P/N: ms20819-4j
Category: Fasteners & Hardware
This product requires a custom quote. Please contact our sales team for pricing information or submit an RFQ (Request for Quote).
Available Inventory
| Condition | Stock |
|---|---|
| New Surplus | 1 Available |
Product Description
The MS20819-4J is a flared tube fitting sleeve designed for 1/4 inch tubing per MS20819 specification. This corrosion-resistant steel component backs up the tube flare during connection, preventing deformation under the coupling nut. Install the sleeve behind the tube flare, seating it against the flare surface before tightening the nut.
Used throughout aircraft hydraulic, fuel, and pneumatic fluid line systems where reliable leak-free connections are critical. Cross-references AN819-4J and AS5176 standards. Installation follows applicable aircraft maintenance manual procedures for proper seating and torque.
Please note: Product descriptions are provided for informational purposes. Always refer to your aircraft's Illustrated Parts Catalog (IPC) to verify part compatibility and specifications.
Frequently Asked Questions
What is the SLEEVE,FLARED,TUBE FTG (P/N ms20819-4j)?
The MS20819-4J is a flared tube fitting sleeve designed for 1/4 inch tubing per MS20819 specification. This corrosion-resistant steel component backs up the tube flare during connection, preventing deformation under the coupling nut.
Does the ms20819-4j meet AN/MS/NAS aviation specifications?
Aircraft hardware is manufactured to military and aviation specifications. The SLEEVE,FLARED,TUBE FTG conforms to its applicable AN (Air Force-Navy), MS (Military Standard), or NAS (National Aerospace Standard) specification. Contact us for specific specification details.
What material is the ms20819-4j manufactured from?
Aviation hardware is available in various materials including cadmium-plated steel, stainless steel, aluminum alloy, and titanium depending on the application. Contact us for material certification and specifications for the ms20819-4j.
Can I order the ms20819-4j in custom quantities?
Yes, we sell hardware in various quantities from single units to bulk lots. The SLEEVE,FLARED,TUBE FTG is available in: New Surplus. Submit an RFQ for volume pricing or call (904) 998-9101 for quantity availability.
