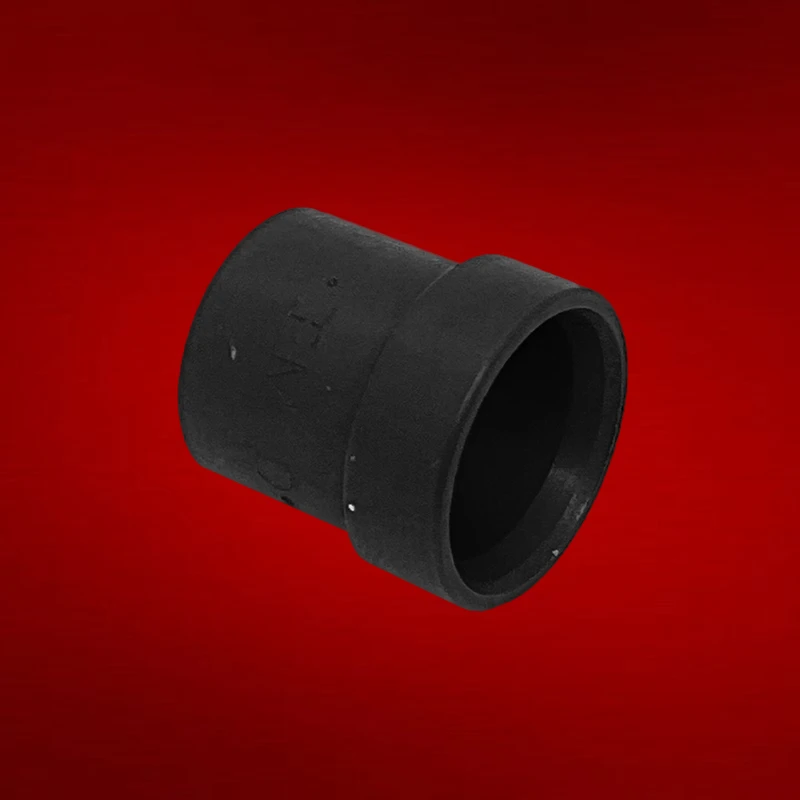

SLEEVE,FLARED,TUBE FTG (P/N ms20819-5) - New Surplus
P/N: ms20819-5
Category: Fasteners & Hardware
This product requires a custom quote. Please contact our sales team for pricing information or submit an RFQ (Request for Quote).
Available Inventory
| Condition | Stock |
|---|---|
| New Surplus | 4 Available |
Product Description
The MS20819-5 is a flared tube fitting sleeve designed for 37° tubing connections conforming to MS20819/AN819 standards. This aluminum sleeve backs up the tube flare and provides a bearing surface for the coupling nut during assembly. Used in aircraft fuel and hydraulic systems, it installs with an AN818 flare nut to create a leak-free connection.
Assembly and torque specifications follow SAE AS4841 and applicable aircraft maintenance manual procedures. The sleeve ensures proper load distribution and prevents flare deformation during operation.
Please note: Product descriptions are provided for informational purposes. Always refer to your aircraft's Illustrated Parts Catalog (IPC) to verify part compatibility and specifications.
Frequently Asked Questions
What is the SLEEVE,FLARED,TUBE FTG (P/N ms20819-5)?
The MS20819-5 is a flared tube fitting sleeve designed for 37° tubing connections conforming to MS20819/AN819 standards. This aluminum sleeve backs up the tube flare and provides a bearing surface for the coupling nut during assembly.
Does the ms20819-5 meet AN/MS/NAS aviation specifications?
Aircraft hardware is manufactured to military and aviation specifications. The SLEEVE,FLARED,TUBE FTG conforms to its applicable AN (Air Force-Navy), MS (Military Standard), or NAS (National Aerospace Standard) specification. Contact us for specific specification details.
What material is the ms20819-5 manufactured from?
Aviation hardware is available in various materials including cadmium-plated steel, stainless steel, aluminum alloy, and titanium depending on the application. Contact us for material certification and specifications for the ms20819-5.
Can I order the ms20819-5 in custom quantities?
Yes, we sell hardware in various quantities from single units to bulk lots. The SLEEVE,FLARED,TUBE FTG is available in: New Surplus. Submit an RFQ for volume pricing or call (904) 998-9101 for quantity availability.
