ELBOW (P/N ms20823-10d) - New Surplus
P/N: ms20823-10d
Category: Fittings & Adapters
This product requires a custom quote. Please contact our sales team for pricing information or submit an RFQ (Request for Quote).
Available Inventory
| Condition | Stock |
|---|---|
| New Surplus | 1 Available |
Product Description

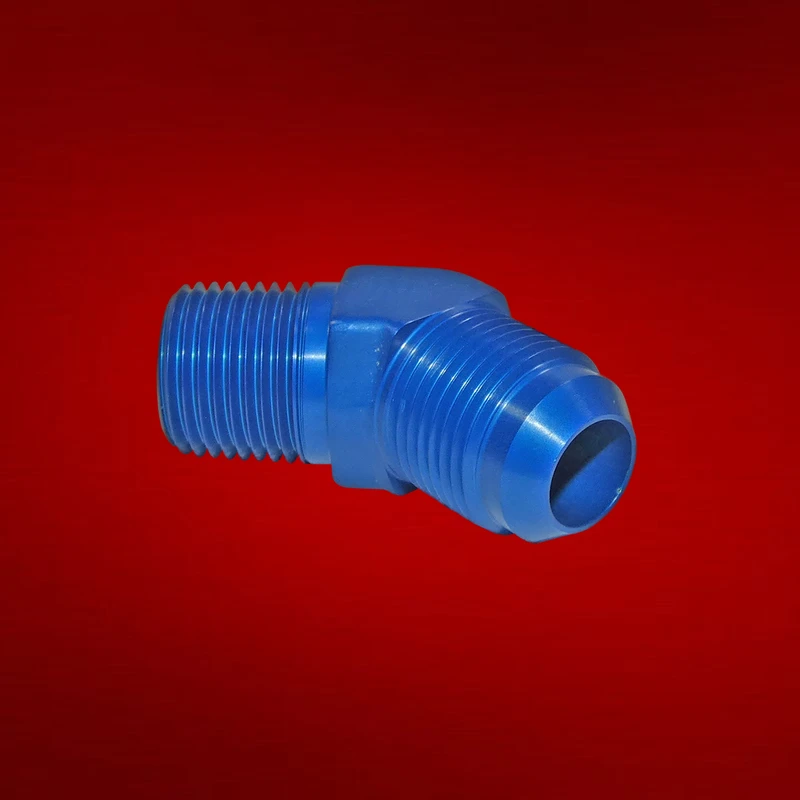

The MS20823-10D is a 45-degree pipe-to-tube elbow fitting manufactured from aluminum alloy 2024 per Military Standard MS20823. This adapter connects flared tubing to pipe thread interfaces, enabling directional changes in confined aircraft spaces. Commonly used in hydraulic systems where 45-degree line routing is required.
Installation uses standard flare tooling with torque specifications per the aircraft maintenance manual. The aluminum construction provides lightweight durability in pressurized fluid applications.
Please note: Product descriptions are provided for informational purposes. Always refer to your aircraft's Illustrated Parts Catalog (IPC) to verify part compatibility and specifications.
Frequently Asked Questions
What is the ELBOW (P/N ms20823-10d)?
The MS20823-10D is a 45-degree pipe-to-tube elbow fitting manufactured from aluminum alloy 2024 per Military Standard MS20823. This adapter connects flared tubing to pipe thread interfaces, enabling directional changes in confined aircraft spaces.
Does the ms20823-10d meet AN/MS/NAS aviation specifications?
Aircraft hardware is manufactured to military and aviation specifications. The ELBOW conforms to its applicable AN (Air Force-Navy), MS (Military Standard), or NAS (National Aerospace Standard) specification. Contact us for specific specification details.
What material is the ms20823-10d manufactured from?
Aviation hardware is available in various materials including cadmium-plated steel, stainless steel, aluminum alloy, and titanium depending on the application. Contact us for material certification and specifications for the ms20823-10d.
Can I order the ms20823-10d in custom quantities?
Yes, we sell hardware in various quantities from single units to bulk lots. The ELBOW is available in: New Surplus. Submit an RFQ for volume pricing or call (904) 998-9101 for quantity availability.
