ELBOW (P/N ms20823-5d) - New Surplus
P/N: ms20823-5d
Category: Fittings & Adapters
This product requires a custom quote. Please contact our sales team for pricing information or submit an RFQ (Request for Quote).
Available Inventory
| Condition | Stock |
|---|---|
| New Surplus | 10 Available |
Product Description

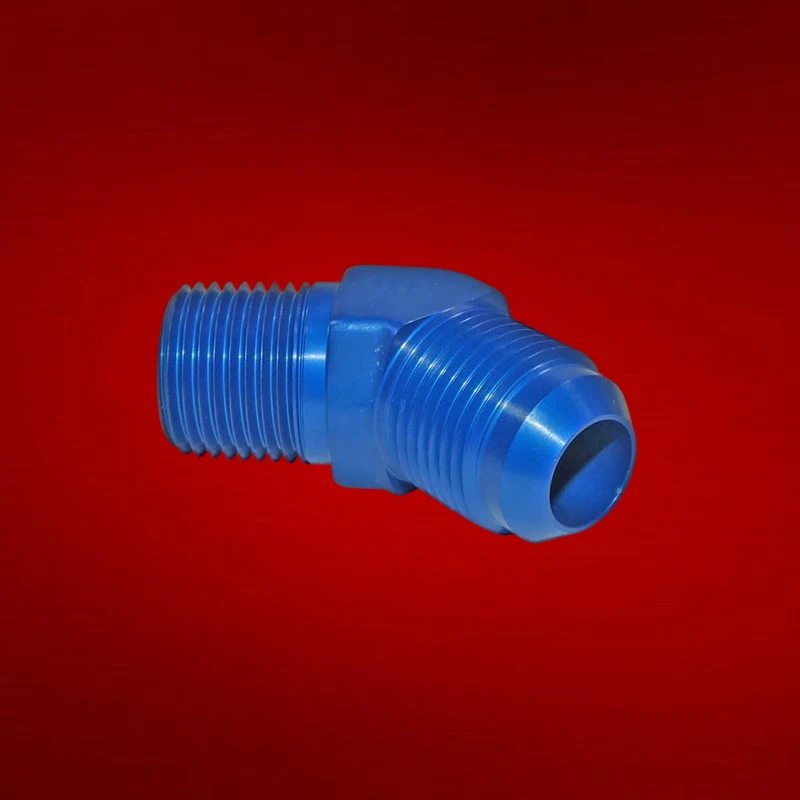

The MS20823-5D is a 45-degree pipe-to-flared-tube elbow fitting conforming to Military Standard MS20823. This steel elbow connects pipe thread ports to aviation flared tubing at a 45-degree angle, providing directional changes in compact spaces. Used in aircraft fuel, hydraulic, and pneumatic systems where angled connections are required.
The fitting maintains pressure integrity in fluid lines while accommodating tight installations. Install per aircraft maintenance manual specifications, confirming compatibility with legacy AN823-5D hardware when replacing older components.
Please note: Product descriptions are provided for informational purposes. Always refer to your aircraft's Illustrated Parts Catalog (IPC) to verify part compatibility and specifications.
Frequently Asked Questions
What is the ELBOW (P/N ms20823-5d)?
The MS20823-5D is a 45-degree pipe-to-flared-tube elbow fitting conforming to Military Standard MS20823. This steel elbow connects pipe thread ports to aviation flared tubing at a 45-degree angle, providing directional changes in compact spaces.
Does the ms20823-5d meet AN/MS/NAS aviation specifications?
Aircraft hardware is manufactured to military and aviation specifications. The ELBOW conforms to its applicable AN (Air Force-Navy), MS (Military Standard), or NAS (National Aerospace Standard) specification. Contact us for specific specification details.
What material is the ms20823-5d manufactured from?
Aviation hardware is available in various materials including cadmium-plated steel, stainless steel, aluminum alloy, and titanium depending on the application. Contact us for material certification and specifications for the ms20823-5d.
Can I order the ms20823-5d in custom quantities?
Yes, we sell hardware in various quantities from single units to bulk lots. The ELBOW is available in: New Surplus. Submit an RFQ for volume pricing or call (904) 998-9101 for quantity availability.
