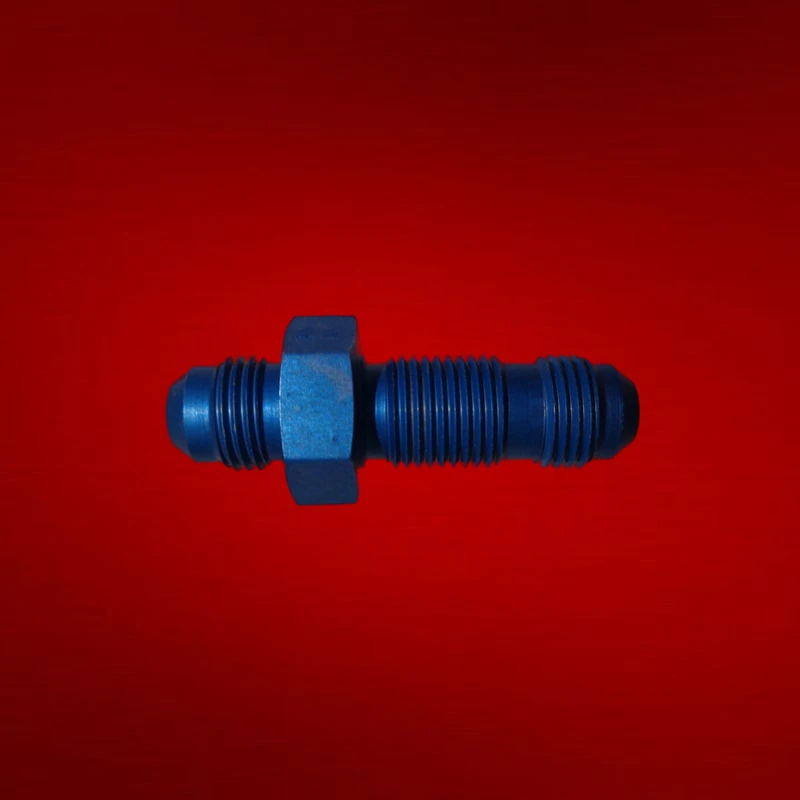

NIPPLE,TUBE (P/N ms24393d6) - New
P/N: ms24393d6
Category: Fittings & Adapters
This product requires a custom quote. Please contact our sales team for pricing information or submit an RFQ (Request for Quote).
Available Inventory
| Condition | Stock |
|---|---|
| New | 3 Available |
Product Description
The MS24393D6 is a flared tube nipple conforming to MS24393 and AS5406 specifications for aircraft fluid system bulkhead connections. This component features a 37-degree flared seat that accepts standard flared tubing and external threads for panel mounting. The nipple passes rigid tubes through structural bulkheads in hydraulic, fuel, and pneumatic circuits while maintaining pressure integrity.
Installation requires a matching sleeve and nut, torqued per aircraft maintenance manual specifications. Stainless steel or aluminum construction resists corrosion in aviation fluid environments.
Please note: Product descriptions are provided for informational purposes. Always refer to your aircraft's Illustrated Parts Catalog (IPC) to verify part compatibility and specifications.
Frequently Asked Questions
What is the NIPPLE,TUBE (P/N ms24393d6)?
The MS24393D6 is a flared tube nipple conforming to MS24393 and AS5406 specifications for aircraft fluid system bulkhead connections. This component features a 37-degree flared seat that accepts standard flared tubing and external threads for panel mounting.
Does the ms24393d6 meet AN/MS/NAS aviation specifications?
Aircraft hardware is manufactured to military and aviation specifications. The NIPPLE,TUBE conforms to its applicable AN (Air Force-Navy), MS (Military Standard), or NAS (National Aerospace Standard) specification. Contact us for specific specification details.
What material is the ms24393d6 manufactured from?
Aviation hardware is available in various materials including cadmium-plated steel, stainless steel, aluminum alloy, and titanium depending on the application. Contact us for material certification and specifications for the ms24393d6.
Can I order the ms24393d6 in custom quantities?
Yes, we sell hardware in various quantities from single units to bulk lots. The NIPPLE,TUBE is available in: New. Submit an RFQ for volume pricing or call (904) 998-9101 for quantity availability.
