TERMINAL,LUG (P/N ms25036-151) - New Surplus
P/N: ms25036-151
Category: Terminals
This product requires a custom quote. Please contact our sales team for pricing information or submit an RFQ (Request for Quote).
Available Inventory
| Condition | Stock |
|---|---|
| New Surplus | 5 Available |
Product Description

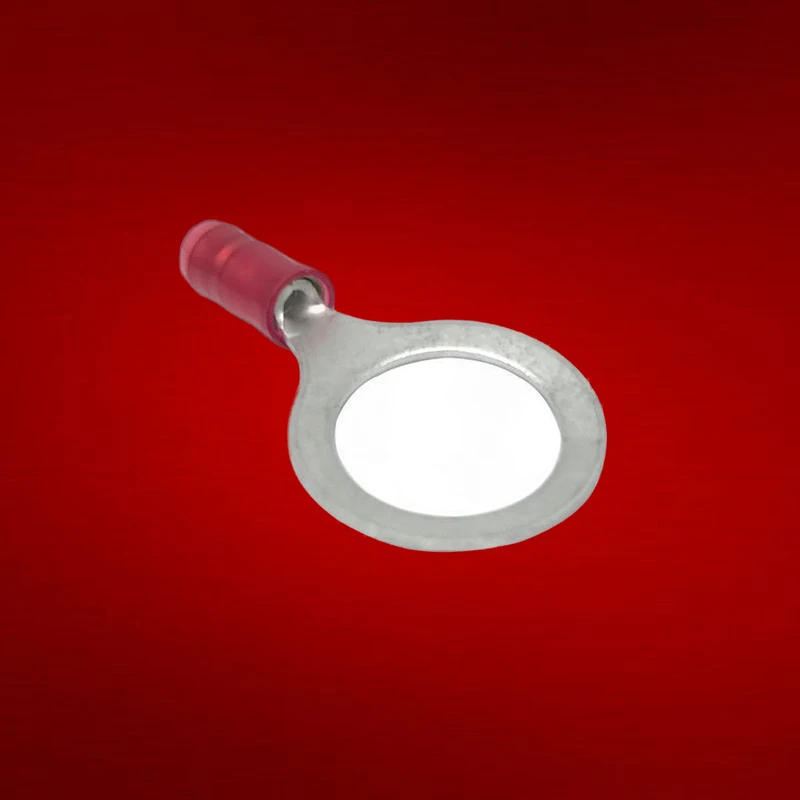

The MS25036-151 is an insulated ring tongue terminal lug designed for aircraft electrical harness terminations. This copper-body connector crimps onto wire conductors and secures to a stud interface, following SAE-AS25036 specifications. The insulation protects against short circuits in airframe and avionics wiring systems.
Installation requires qualified crimping tooling matched to wire gauge and stud size, with final inspection per maintenance manual requirements.
Please note: Product descriptions are provided for informational purposes. Always refer to your aircraft's Illustrated Parts Catalog (IPC) to verify part compatibility and specifications.
Frequently Asked Questions
What is the TERMINAL,LUG (P/N ms25036-151)?
The MS25036-151 is an insulated ring tongue terminal lug designed for aircraft electrical harness terminations. This copper-body connector crimps onto wire conductors and secures to a stud interface, following SAE-AS25036 specifications.
Is the ms25036-151 compatible with my aircraft's avionics suite?
Avionics compatibility depends on your aircraft model and existing installation. The TERMINAL,LUG is available in: New Surplus. We recommend checking your aircraft's wiring diagrams and STC documentation, or contact our avionics team for compatibility assistance.
Does the ms25036-151 come with an 8130-3 airworthiness tag?
Availability of an FAA 8130-3 tag depends on the part condition. Overhauled and repaired units typically include 8130-3 documentation. As-removed units may include a removal tag with trace history. Contact us for specific documentation on the condition you need.
Do you offer bench testing for the ms25036-151?
We can arrange bench testing through our network of FAA-certified repair stations. Call (904) 998-9101 for testing availability and turnaround times, or submit an RFQ with your specific requirements.
