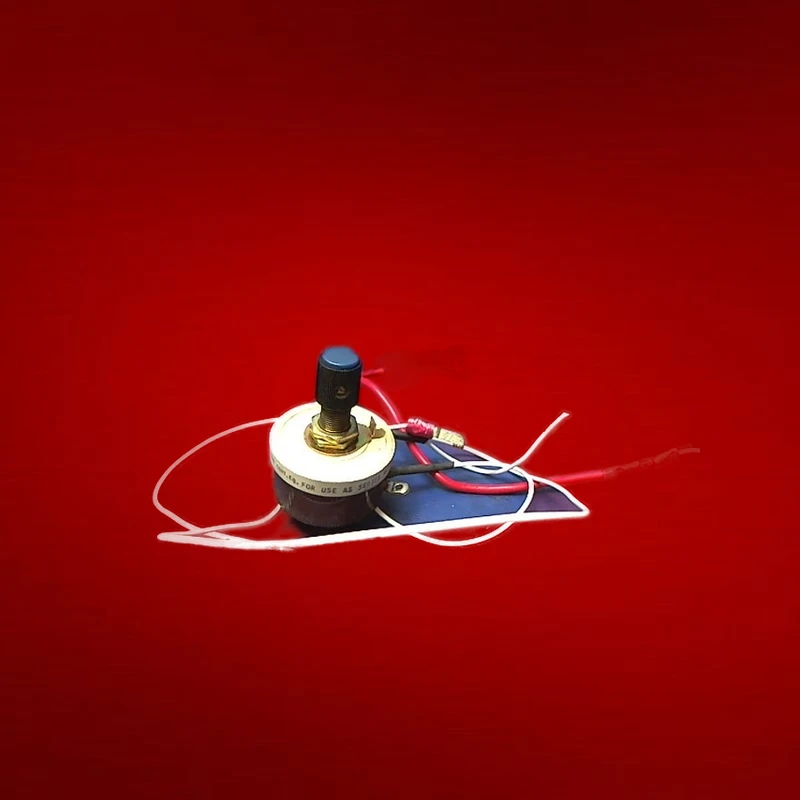

RHEOSTAT (P/N rhs25r) - As Removed
P/N: rhs25r
Category: Electrical Components
This product requires a custom quote. Please contact our sales team for pricing information or submit an RFQ (Request for Quote).
Available Inventory
| Condition | Stock |
|---|---|
| As Removed | 1 Available |
Product Description
The rhs25r is a panel-mount wirewound rheostat for aircraft electrical circuits. This variable resistor adjusts instrument lighting brightness by controlling current flow through the dimming circuit. Installed directly on instrument panels with solder-lug terminations, it provides smooth resistance variation from full brightness to dim.
Aligns with Ohmite's RHS 25 W series specifications. Installation follows aircraft maintenance manual procedures and FAA AC 43.13-1B electrical standards for panel-mounted components.
Please note: Product descriptions are provided for informational purposes. Always refer to your aircraft's Illustrated Parts Catalog (IPC) to verify part compatibility and specifications.
Frequently Asked Questions
What is the RHEOSTAT (P/N rhs25r)?
The rhs25r is a panel-mount wirewound rheostat for aircraft electrical circuits. This variable resistor adjusts instrument lighting brightness by controlling current flow through the dimming circuit.
Is the rhs25r compatible with my aircraft's avionics suite?
Avionics compatibility depends on your aircraft model and existing installation. The RHEOSTAT is available in: As Removed. We recommend checking your aircraft's wiring diagrams and STC documentation, or contact our avionics team for compatibility assistance.
Does the rhs25r come with an 8130-3 airworthiness tag?
Availability of an FAA 8130-3 tag depends on the part condition. Overhauled and repaired units typically include 8130-3 documentation. As-removed units may include a removal tag with trace history. Contact us for specific documentation on the condition you need.
Do you offer bench testing for the rhs25r?
We can arrange bench testing through our network of FAA-certified repair stations. Call (904) 998-9101 for testing availability and turnaround times, or submit an RFQ with your specific requirements.
