CIRCUIT BREAKER (P/N w23x1a1g-10) - As Removed
P/N: w23x1a1g-10
Category: Circuit Breakers & Fuses
This product requires a custom quote. Please contact our sales team for pricing information or submit an RFQ (Request for Quote).
Available Inventory
| Condition | Stock |
|---|---|
| As Removed | 1 Available |
Product Description

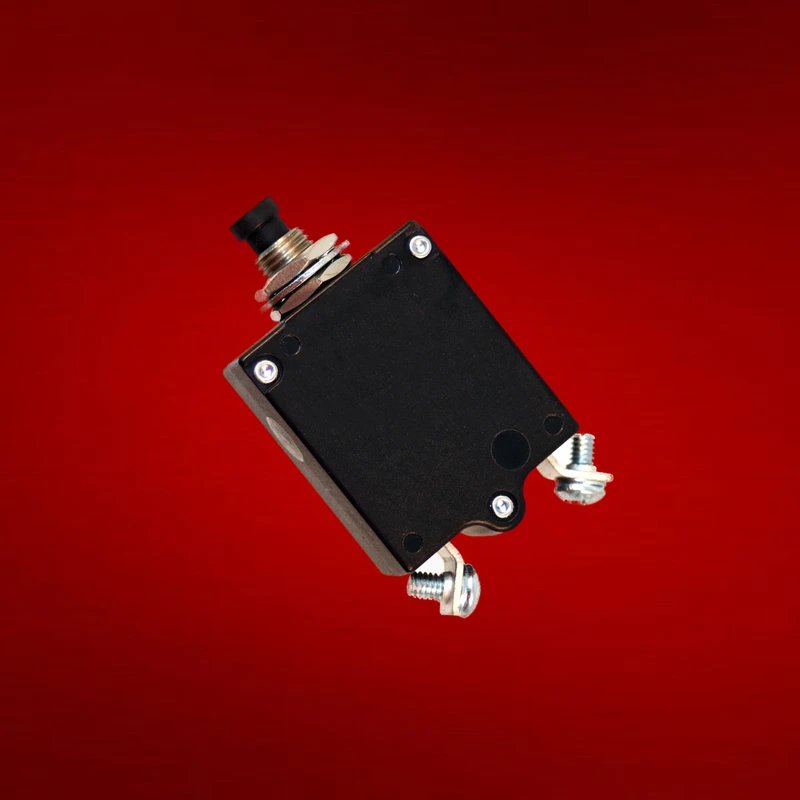

The w23x1a1g-10 is a single-pole thermal circuit breaker rated 10 amperes at 240 VAC/50 VDC. This TE Connectivity Potter & Brumfield W23 series breaker protects avionics and lighting circuits on aircraft instrument panels from overcurrent conditions. The breaker features screw terminals for panel mounting and series-trip operation, automatically disconnecting power when current exceeds the 10 A rating.
Install per aircraft maintenance manual specifications, confirming the breaker rating and mounting configuration match the original component.
Please note: Product descriptions are provided for informational purposes. Always refer to your aircraft's Illustrated Parts Catalog (IPC) to verify part compatibility and specifications.
Frequently Asked Questions
What is the CIRCUIT BREAKER (P/N w23x1a1g-10)?
The w23x1a1g-10 is a single-pole thermal circuit breaker rated 10 amperes at 240 VAC/50 VDC. This TE Connectivity Potter & Brumfield W23 series breaker protects avionics and lighting circuits on aircraft instrument panels from overcurrent conditions.
Is the w23x1a1g-10 compatible with my aircraft's avionics suite?
Avionics compatibility depends on your aircraft model and existing installation. The CIRCUIT BREAKER is available in: As Removed. We recommend checking your aircraft's wiring diagrams and STC documentation, or contact our avionics team for compatibility assistance.
Does the w23x1a1g-10 come with an 8130-3 airworthiness tag?
Availability of an FAA 8130-3 tag depends on the part condition. Overhauled and repaired units typically include 8130-3 documentation. As-removed units may include a removal tag with trace history. Contact us for specific documentation on the condition you need.
Do you offer bench testing for the w23x1a1g-10?
We can arrange bench testing through our network of FAA-certified repair stations. Call (904) 998-9101 for testing availability and turnaround times, or submit an RFQ with your specific requirements.
