CIRCUIT BREAKER (P/N w23x1a1g5) - As Removed
P/N: w23x1a1g5
Category: Circuit Breakers & Fuses
This product requires a custom quote. Please contact our sales team for pricing information or submit an RFQ (Request for Quote).
Available Inventory
| Condition | Stock |
|---|---|
| As Removed | 1 Available |
Product Description

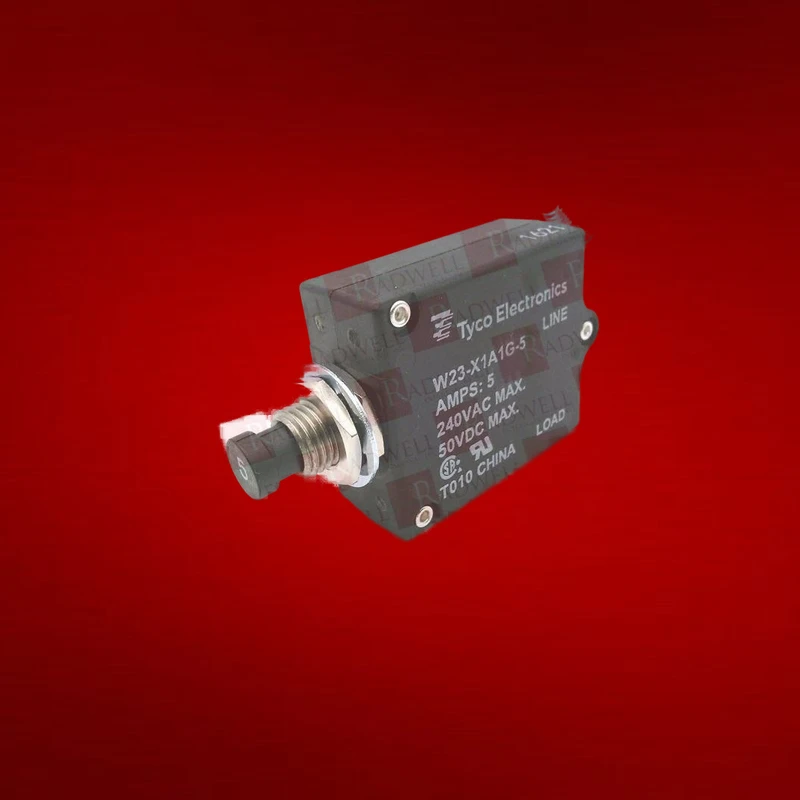

The w23x1a1g5 is a single-pole thermal circuit breaker rated for 5 A at 240 VAC or 50 VDC. This panel-mount breaker provides series-trip protection for aircraft electrical distribution systems, automatically interrupting power when current exceeds rated limits. Commonly installed in distribution panels to protect avionics feeders, lighting circuits, and accessory loads.
The breaker resets manually after thermal trip, allowing quick restoration of power following fault clearance. Installation follows aircraft wiring diagrams and maintenance manuals per FAA requirements in 14 CFR §25.1357 and §27.1357.
Please note: Product descriptions are provided for informational purposes. Always refer to your aircraft's Illustrated Parts Catalog (IPC) to verify part compatibility and specifications.
Frequently Asked Questions
What is the CIRCUIT BREAKER (P/N w23x1a1g5)?
The w23x1a1g5 is a single-pole thermal circuit breaker rated for 5 A at 240 VAC or 50 VDC. This panel-mount breaker provides series-trip protection for aircraft electrical distribution systems, automatically interrupting power when current exceeds rated limits.
Is the w23x1a1g5 compatible with my aircraft's avionics suite?
Avionics compatibility depends on your aircraft model and existing installation. The CIRCUIT BREAKER is available in: As Removed. We recommend checking your aircraft's wiring diagrams and STC documentation, or contact our avionics team for compatibility assistance.
Does the w23x1a1g5 come with an 8130-3 airworthiness tag?
Availability of an FAA 8130-3 tag depends on the part condition. Overhauled and repaired units typically include 8130-3 documentation. As-removed units may include a removal tag with trace history. Contact us for specific documentation on the condition you need.
Do you offer bench testing for the w23x1a1g5?
We can arrange bench testing through our network of FAA-certified repair stations. Call (904) 998-9101 for testing availability and turnaround times, or submit an RFQ with your specific requirements.
