TERMINAL: FEMALE,CHAIN,BR TIN (P/N 02-09-1119) - New Surplus
P/N: 02-09-1119
Category: Terminals
This product requires a custom quote. Please contact our sales team for pricing information or submit an RFQ (Request for Quote).
Available Inventory
| Condition | Stock |
|---|---|
| New Surplus | 10 Available |
Product Description

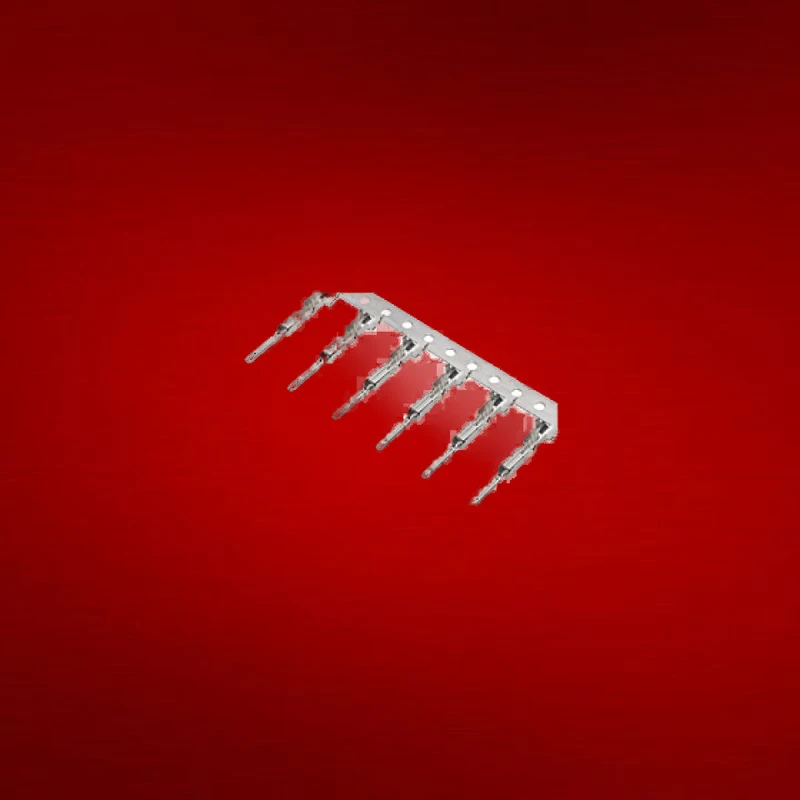

The 02-09-1119 is a female crimp socket terminal for aircraft electrical harnesses. This brass terminal accepts discrete wires through controlled crimping, creating reliable connections to mating pins in modular connector housings. Used in low-voltage power and signal circuits throughout general and commercial aircraft systems.
Installation requires qualified crimping tooling and adherence to connector manufacturer specifications. The brass construction provides dependable electrical contact in aerospace environments, supporting both new harness assembly and MRO maintenance applications.
Please note: Product descriptions are provided for informational purposes. Always refer to your aircraft's Illustrated Parts Catalog (IPC) to verify part compatibility and specifications.
Frequently Asked Questions
What is the TERMINAL: FEMALE,CHAIN,BR TIN (P/N 02-09-1119)?
The 02-09-1119 is a female crimp socket terminal for aircraft electrical harnesses. This brass terminal accepts discrete wires through controlled crimping, creating reliable connections to mating pins in modular connector housings.
Is the 02-09-1119 compatible with my aircraft's avionics suite?
Avionics compatibility depends on your aircraft model and existing installation. The TERMINAL: FEMALE,CHAIN,BR TIN is available in: New Surplus. We recommend checking your aircraft's wiring diagrams and STC documentation, or contact our avionics team for compatibility assistance.
Does the 02-09-1119 come with an 8130-3 airworthiness tag?
Availability of an FAA 8130-3 tag depends on the part condition. Overhauled and repaired units typically include 8130-3 documentation. As-removed units may include a removal tag with trace history. Contact us for specific documentation on the condition you need.
Do you offer bench testing for the 02-09-1119?
We can arrange bench testing through our network of FAA-certified repair stations. Call (904) 998-9101 for testing availability and turnaround times, or submit an RFQ with your specific requirements.
