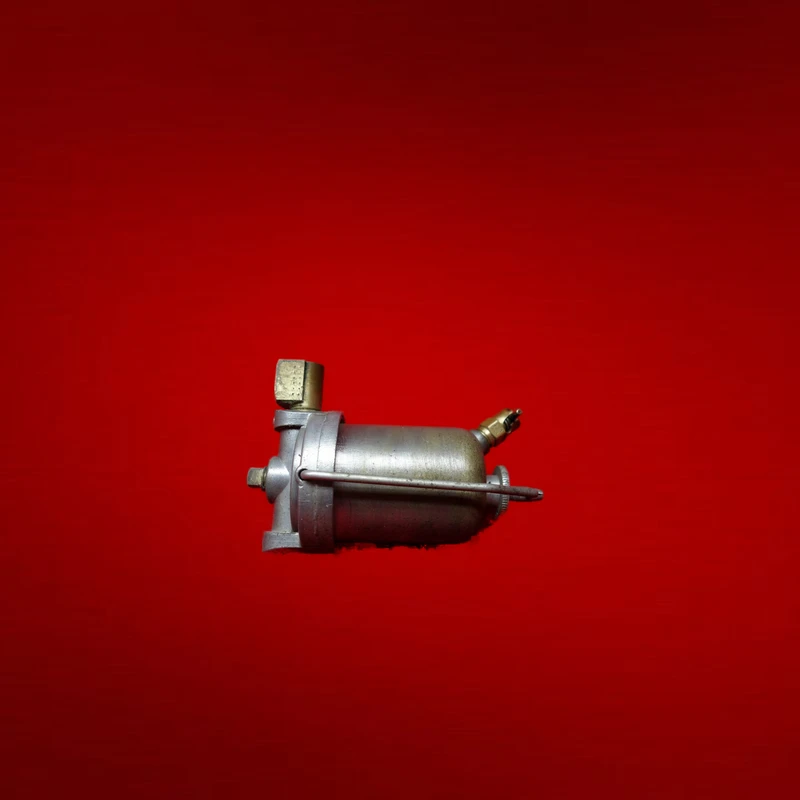

DIAPHRAGM ASSEMBLY (P/N 10544-1) - As Removed
P/N: 10544-1
Category: General Aircraft Parts
This product requires a custom quote. Please contact our sales team for pricing information or submit an RFQ (Request for Quote).
Available Inventory
| Condition | Stock |
|---|---|
| As Removed | 1 Available |
Product Description
The 10544-1 is a fabric-reinforced elastomer diaphragm assembly that isolates and regulates pressure in aircraft fuel and pneumatic systems. In engine-driven fuel pumps, this component maintains consistent outlet pressure despite fluctuations in manifold vacuum during flight operations. The flexible membrane responds to pressure differentials, automatically adjusting flow to prevent system overpressure while ensuring adequate fuel delivery.
Installation requires verification against OEM drawings and component overhaul manual specifications. Proper seating and testing confirm diaphragm integrity before returning the assembly to service.
Please note: Product descriptions are provided for informational purposes. Always refer to your aircraft's Illustrated Parts Catalog (IPC) to verify part compatibility and specifications.
Frequently Asked Questions
What is the DIAPHRAGM ASSEMBLY (P/N 10544-1)?
The 10544-1 is a fabric-reinforced elastomer diaphragm assembly that isolates and regulates pressure in aircraft fuel and pneumatic systems. In engine-driven fuel pumps, this component maintains consistent outlet pressure despite fluctuations in manifold vacuum during flight operations.
What conditions is the 10544-1 available in?
The 10544-1 is currently available in the following conditions: As Removed. Each condition reflects the part's maintenance history and certification status per FAA standards.
How do I get pricing for the 10544-1?
The 10544-1 requires a custom quote. Submit a Request for Quote (RFQ) through our website or call our sales team at (904) 998-9101 for immediate pricing assistance.
Do you offer expedited shipping for the 10544-1?
Yes, we offer same-day processing on in-stock items and provide 24/7 AOG (Aircraft on Ground) support for urgent needs. Standard, expedited, and overnight shipping options are available.
