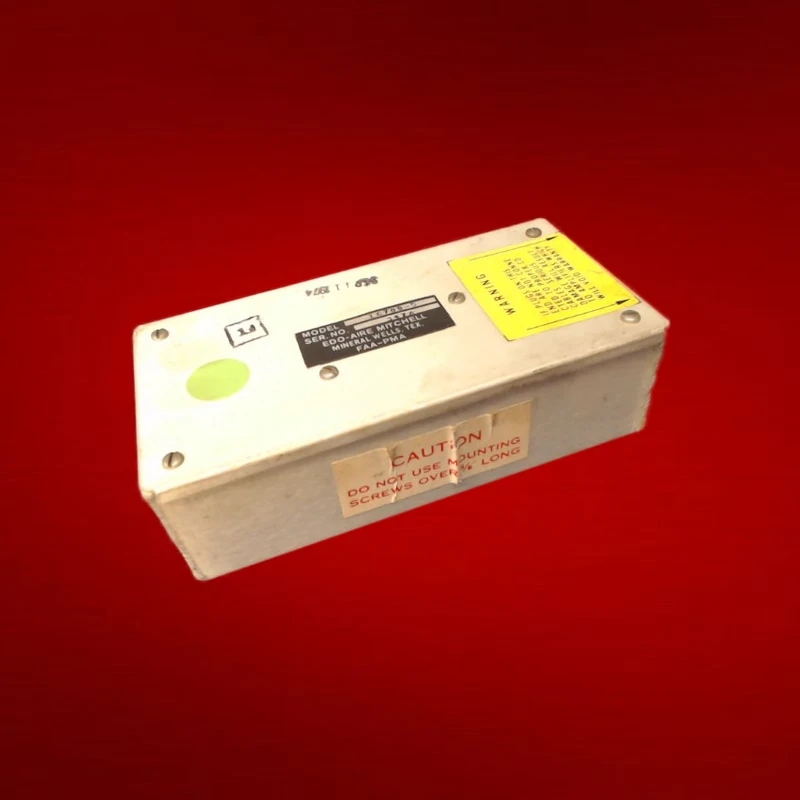

AMPLIFIER (P/N 1c709-5) - As Removed
P/N: 1c709-5
Category: Electrical Components
This product requires a custom quote. Please contact our sales team for pricing information or submit an RFQ (Request for Quote).
Available Inventory
| Condition | Stock |
|---|---|
| As Removed | 2 Available |
Product Description
The 1C709-5 is an electronic pitch trim amplifier for Edo-Aire/Mitchell autopilot systems. This component conditions and drives pitch-trim signals on 14/28 VDC aircraft electrical buses, converting autopilot commands into control surface actuation. Used in electric pitch-trim control installations on Piper PA-34-200T Seneca and compatible Century/Edo-Aire autopilot platforms.
Installation requires verification against the aircraft's Illustrated Parts Catalog and adherence to avionics wiring diagrams specified in the maintenance manual.
Please note: Product descriptions are provided for informational purposes. Always refer to your aircraft's Illustrated Parts Catalog (IPC) to verify part compatibility and specifications.
Frequently Asked Questions
What is the AMPLIFIER (P/N 1c709-5)?
The 1C709-5 is an electronic pitch trim amplifier for Edo-Aire/Mitchell autopilot systems. This component conditions and drives pitch-trim signals on 14/28 VDC aircraft electrical buses, converting autopilot commands into control surface actuation.
Is the 1c709-5 compatible with my aircraft's avionics suite?
Avionics compatibility depends on your aircraft model and existing installation. The AMPLIFIER is available in: As Removed. We recommend checking your aircraft's wiring diagrams and STC documentation, or contact our avionics team for compatibility assistance.
Does the 1c709-5 come with an 8130-3 airworthiness tag?
Availability of an FAA 8130-3 tag depends on the part condition. Overhauled and repaired units typically include 8130-3 documentation. As-removed units may include a removal tag with trace history. Contact us for specific documentation on the condition you need.
Do you offer bench testing for the 1c709-5?
We can arrange bench testing through our network of FAA-certified repair stations. Call (904) 998-9101 for testing availability and turnaround times, or submit an RFQ with your specific requirements.
