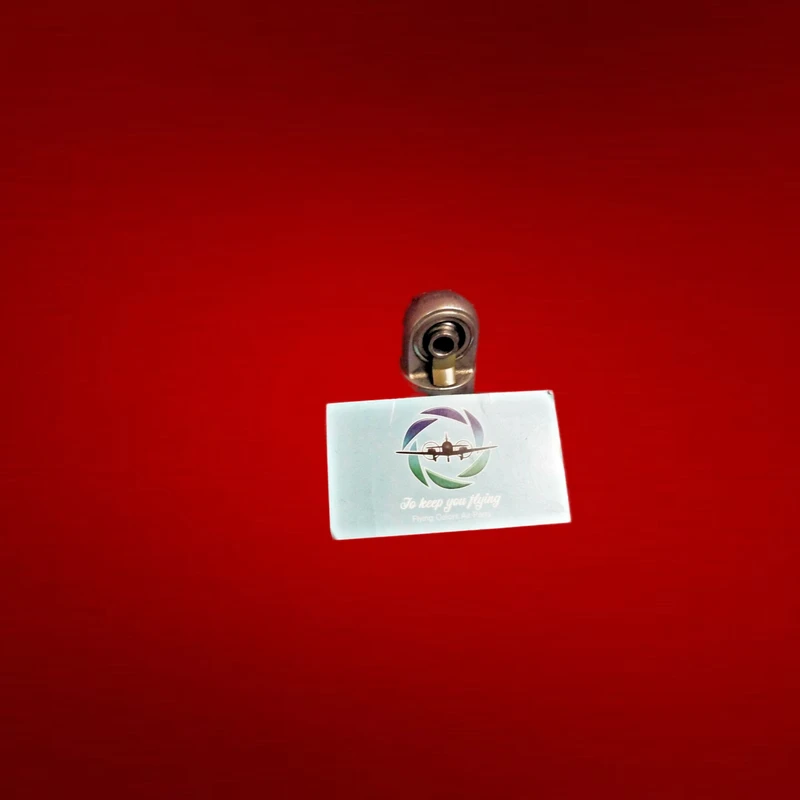

TRUNNION ASSY, ROD END W/ BEARING (P/N 204-011-451-001) - As Removed
P/N: 204-011-451-001
Category: Studs, Inserts & Fastener Hardware
Shipping for this part is quoted to your address. We email you the total to approve before anything is charged.
Available Inventory
| Condition | Price | Stock |
|---|---|---|
| As Removed | $600.00 | 1 Available |
Product Description
The 204-011-451-001 is a trunnion assembly rod end featuring an integral spherical plain bearing for aircraft control linkages. This component accommodates angular misalignment while transferring loads in rotor-control applications, particularly swashplate connections on helicopters. The rod end transmits pilot control inputs through the linkage system with minimal friction loss.
Installation requires proper alignment and safetying per the aircraft maintenance manual and MIL-HDBK-1599A rod-end installation guidance. Verify compatibility with your aircraft's illustrated parts catalog before installation.
Please note: Product descriptions are provided for informational purposes. Always refer to your aircraft's Illustrated Parts Catalog (IPC) to verify part compatibility and specifications.
Frequently Asked Questions
What is the TRUNNION ASSY, ROD END W/ BEARING (P/N 204-011-451-001)?
The 204-011-451-001 is a trunnion assembly rod end featuring an integral spherical plain bearing for aircraft control linkages. This component accommodates angular misalignment while transferring loads in rotor-control applications, particularly swashplate connections on helicopters.
Does the 204-011-451-001 meet AN/MS/NAS aviation specifications?
Aircraft hardware is manufactured to military and aviation specifications. The TRUNNION ASSY, ROD END W/ BEARING conforms to its applicable AN (Air Force-Navy), MS (Military Standard), or NAS (National Aerospace Standard) specification. Contact us for specific specification details.
What material is the 204-011-451-001 manufactured from?
Aviation hardware is available in various materials including cadmium-plated steel, stainless steel, aluminum alloy, and titanium depending on the application. Contact us for material certification and specifications for the 204-011-451-001.
Can I order the 204-011-451-001 in custom quantities?
Yes, we sell hardware in various quantities from single units to bulk lots. The TRUNNION ASSY, ROD END W/ BEARING is available in: As Removed. Submit an RFQ for volume pricing or call (904) 998-9101 for quantity availability.
