STUD (P/N 40s45-3b) - New Surplus

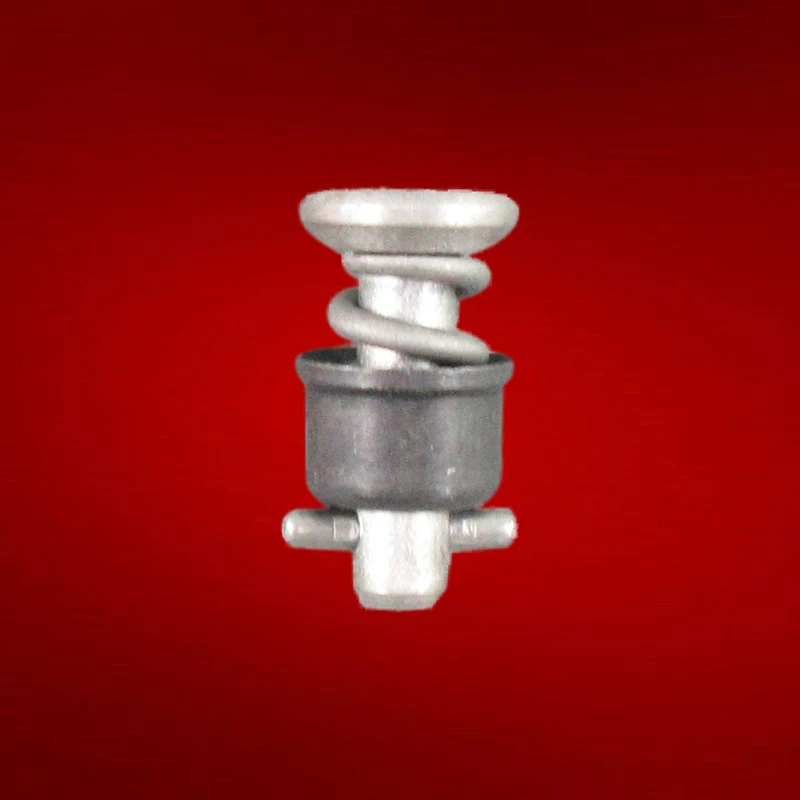

The 40S45-3B is a Camloc 4002 series quarter-turn stud assembly fabricated from 300 series stainless steel (CRES). This stud mates with a matching 4002 receptacle and grommet to provide positive panel retention in aircraft access panels. Installation requires matching the stud length to total panel thickness, then securing per aircraft maintenance manual specifications.

Quarter-turn operation enables quick panel removal and reinstallation during maintenance and inspection cycles.

What is the STUD (P/N 40s45-3b)?

The 40S45-3B is a Camloc 4002 series quarter-turn stud assembly fabricated from 300 series stainless steel (CRES). This stud mates with a matching 4002 receptacle and grommet to provide positive panel retention in aircraft access panels.

Does the 40s45-3b meet AN/MS/NAS aviation specifications?

Aircraft hardware is manufactured to military and aviation specifications. The STUD conforms to its applicable AN (Air Force-Navy), MS (Military Standard), or NAS (National Aerospace Standard) specification. Contact us for specific specification details.

What material is the 40s45-3b manufactured from?

Aviation hardware is available in various materials including cadmium-plated steel, stainless steel, aluminum alloy, and titanium depending on the application. Contact us for material certification and specifications for the 40s45-3b.

Can I order the 40s45-3b in custom quantities?

Yes, we sell hardware in various quantities from single units to bulk lots. The STUD is available in: New Surplus. Submit an RFQ for volume pricing or call (904) 998-9101 for quantity availability.
