MANIFOLD: VACUUM,NEW (P/N aa1h5-25a) - New Surplus
P/N: aa1h5-25a
Category: Manifolds & Induction
Flat-rate shipping. Choose Ground or a faster service at checkout.
Flat-rate shipping covers most parts. If your order turns out to need freight or special handling, we'll contact you with the updated shipping cost before it ships. You can pay the difference or cancel for a full refund. International buyers pay any duties and import taxes.
Available Inventory
| Condition | Price | Stock |
|---|---|---|
| New Surplus | $850.00 | 3 Available |
Product Description

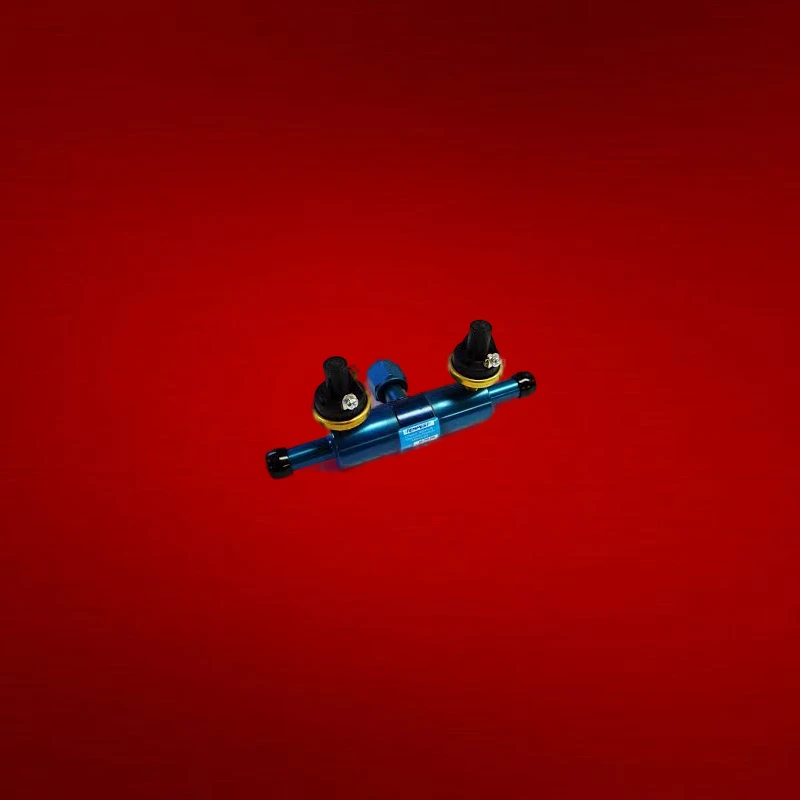

The aa1h5-25a is a new vacuum manifold for aircraft pneumatic systems. This component routes engine-driven suction to multiple instrument circuits, distributing vacuum pressure throughout the system. Used in Cessna 172R/S models to supply vacuum-powered attitude and heading instruments.
The manifold consolidates multiple vacuum lines into a single distribution point, reducing complexity in the instrument panel area. Installation requires verification against your aircraft's Illustrated Parts Catalog and compliance with the maintenance manual specifications.
Please note: Product descriptions are provided for informational purposes. Always refer to your aircraft's Illustrated Parts Catalog (IPC) to verify part compatibility and specifications.
Frequently Asked Questions
What is the MANIFOLD: VACUUM,NEW (P/N aa1h5-25a)?
The aa1h5-25a is a new vacuum manifold for aircraft pneumatic systems. This component routes engine-driven suction to multiple instrument circuits, distributing vacuum pressure throughout the system.
What certifications or documentation come with the aa1h5-25a?
Depending on condition, the aa1h5-25a may include an FAA 8130-3 Airworthiness Approval Tag, a yellow serviceable tag, or manufacturer documentation. Currently available in: New Surplus. Contact us for specific documentation details on the condition you need.
Can I use the aa1h5-25a during an engine overhaul or annual inspection?
Yes, the MANIFOLD: VACUUM,NEW can be used in engine overhauls and maintenance events. Always verify part compatibility against your engine's Type Certificate Data Sheet (TCDS) and Illustrated Parts Catalog (IPC) before installation.
What is the lead time for the aa1h5-25a?
In-stock items ship same business day when ordered before 3 PM EST. We also offer 24/7 AOG (Aircraft on Ground) support at (904) 998-9101 for urgent engine part needs.
