BOLT,CLOSE TOLERANCE (P/N an174h5a) - New Surplus
P/N: an174h5a
Category: Bolts
Flat-rate shipping. Choose Ground or a faster service at checkout.
Flat-rate shipping covers most parts. If your order turns out to need freight or special handling, we'll contact you with the updated shipping cost before it ships. You can pay the difference or cancel for a full refund. International buyers pay any duties and import taxes.
Available Inventory
| Condition | Price | Stock |
|---|---|---|
| New Surplus | $6.50 | 5 Available |
Product Description

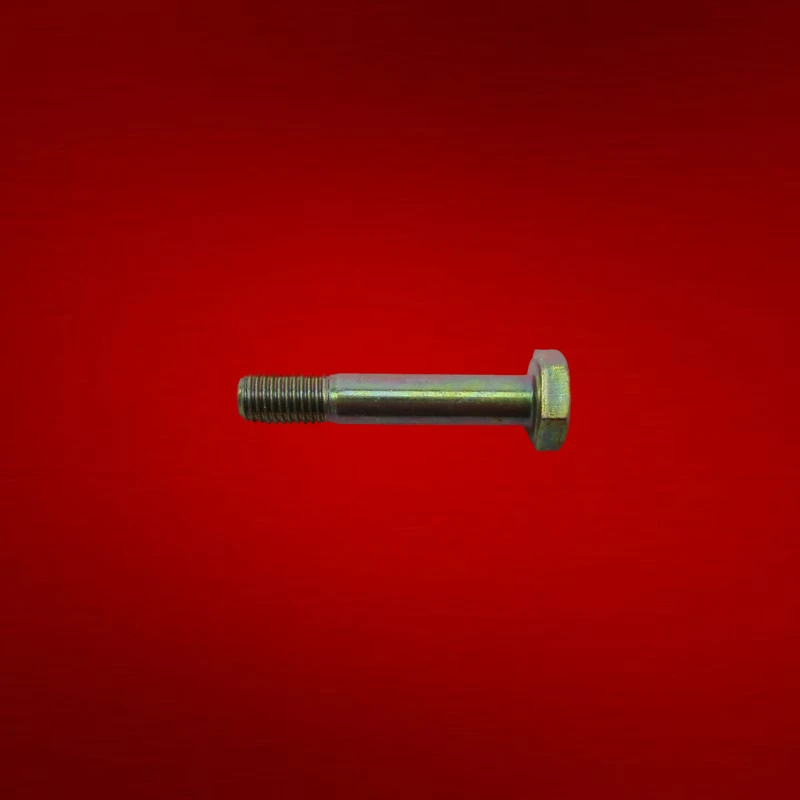

The AN174H5A is a close-tolerance hex head bolt manufactured from alloy steel per NASM6812 specifications. The 'H' designation indicates a drilled head for safety wire installation, while the 'A' denotes an undrilled shank. This bolt is engineered for interference-fit structural joints where precise alignment and minimal shear movement are critical—such as wing attach fittings and high-stress connection points.
Installation requires matching the correct grip length to the application and securing with a self-locking nut or appropriate safetying method per aircraft IPC/SRM documentation. Close tolerances ensure reliable load transfer in primary structure.
Please note: Product descriptions are provided for informational purposes. Always refer to your aircraft's Illustrated Parts Catalog (IPC) to verify part compatibility and specifications.
Frequently Asked Questions
What is the BOLT,CLOSE TOLERANCE (P/N an174h5a)?
The AN174H5A is a close-tolerance hex head bolt manufactured from alloy steel per NASM6812 specifications. The 'H' designation indicates a drilled head for safety wire installation, while the 'A' denotes an undrilled shank.
What conditions is the an174h5a available in?
The an174h5a is currently available in the following conditions: New Surplus. Each condition reflects the part's maintenance history and certification status per FAA standards.
How do I get pricing for the an174h5a?
The an174h5a requires a custom quote. Submit a Request for Quote (RFQ) through our website or call our sales team at (904) 998-9101 for immediate pricing assistance.
Do you offer expedited shipping for the an174h5a?
Yes, we offer same-day processing on in-stock items and provide 24/7 AOG (Aircraft on Ground) support for urgent needs. Standard, expedited, and overnight shipping options are available.
