ELBOW (P/N an916-4d) - New Surplus
P/N: an916-4d
Category: Fittings & Adapters
This product requires a custom quote. Please contact our sales team for pricing information or submit an RFQ (Request for Quote).
Available Inventory
| Condition | Stock |
|---|---|
| New Surplus | 1 Available |
Product Description

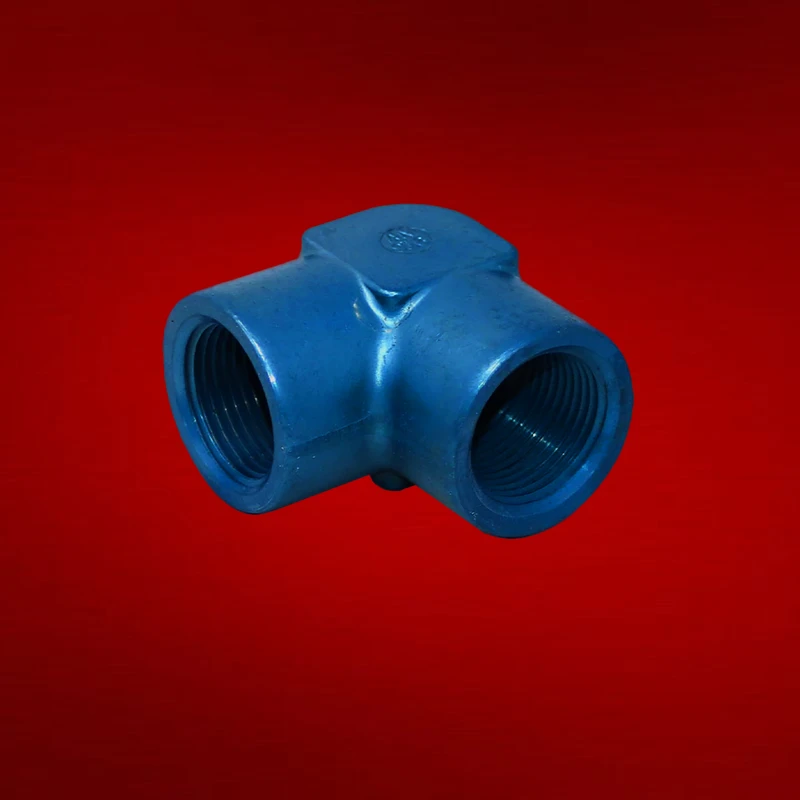

The AN916-4D is a 90-degree elbow fitting with female ANPT threads on both ends, constructed from aluminum for lightweight aircraft fluid line applications. This fitting changes line direction in fuel, oil, and hydraulic systems where right-angle routing is required in confined spaces. The internal pipe-thread design (ANPT) provides secure connections that resist vibration and pressure cycling.
Commonly installed in engine compartments and wing structures where space constraints demand compact directional changes. Installation requires verification of thread series and fitting size against the aircraft maintenance manual to ensure system compatibility.
Please note: Product descriptions are provided for informational purposes. Always refer to your aircraft's Illustrated Parts Catalog (IPC) to verify part compatibility and specifications.
Frequently Asked Questions
What is the ELBOW (P/N an916-4d)?
The AN916-4D is a 90-degree elbow fitting with female ANPT threads on both ends, constructed from aluminum for lightweight aircraft fluid line applications. This fitting changes line direction in fuel, oil, and hydraulic systems where right-angle routing is required in confined spaces.
Does the an916-4d meet AN/MS/NAS aviation specifications?
Aircraft hardware is manufactured to military and aviation specifications. The ELBOW conforms to its applicable AN (Air Force-Navy), MS (Military Standard), or NAS (National Aerospace Standard) specification. Contact us for specific specification details.
What material is the an916-4d manufactured from?
Aviation hardware is available in various materials including cadmium-plated steel, stainless steel, aluminum alloy, and titanium depending on the application. Contact us for material certification and specifications for the an916-4d.
Can I order the an916-4d in custom quantities?
Yes, we sell hardware in various quantities from single units to bulk lots. The ELBOW is available in: New Surplus. Submit an RFQ for volume pricing or call (904) 998-9101 for quantity availability.
