DIPLEXER - P/N CI1125

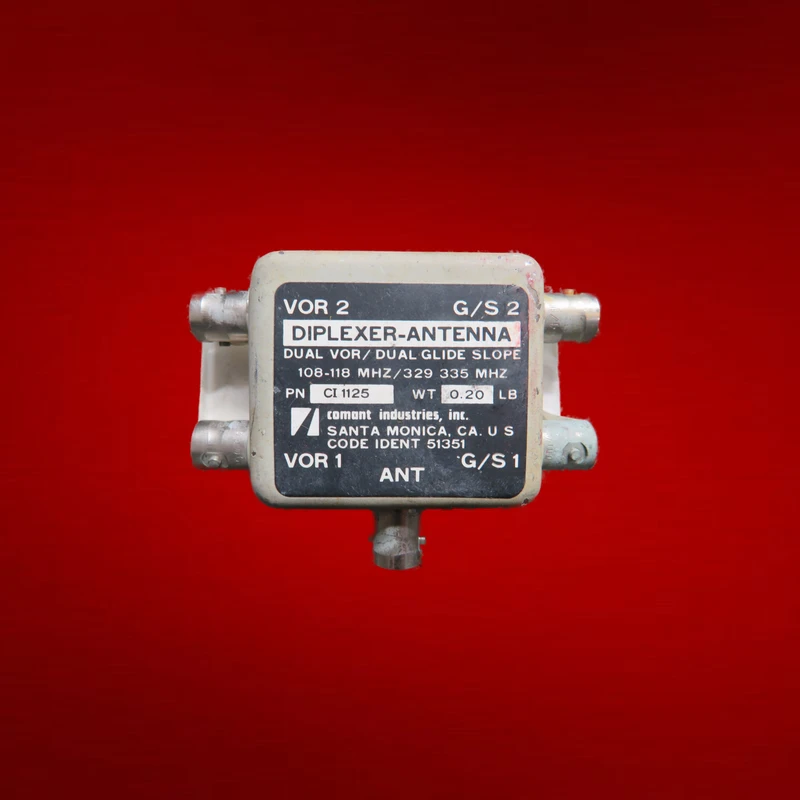

DIPLEXER (P/N CI1125) - As Removed

P/N: CI1125

Category: Antennas

Contact for quote
In Stock (7 available)
Submit RFQ Call for Pricing

This product requires a custom quote. Please contact our sales team for pricing information or submit an RFQ (Request for Quote).

Available Inventory

Condition Stock
As Removed 7 Available

Product Description

The CI1125 is a dual VOR/glide slope RF diplexer that allows two VOR and two glide slope receivers to share a single VOR/GS antenna. It features 50-ohm BNC interfaces housed in an aluminum body and meets FAA TSO-C34c/C36c/C40a standards. This component combines and separates VOR, localizer, and glide slope signal paths in aircraft navigation systems.

Install internally per the avionics installation manual and applicable FAA maintenance practices for reliable multi-receiver NAV installations.

Please note: Product descriptions are provided for informational purposes. Always refer to your aircraft's Illustrated Parts Catalog (IPC) to verify part compatibility and specifications.

Frequently Asked Questions

What is the DIPLEXER (P/N CI1125)?

The CI1125 is a dual VOR/glide slope RF diplexer that allows two VOR and two glide slope receivers to share a single VOR/GS antenna. It features 50-ohm BNC interfaces housed in an aluminum body and meets FAA TSO-C34c/C36c/C40a standards.

Is the CI1125 compatible with my aircraft's avionics suite?

Avionics compatibility depends on your aircraft model and existing installation. The DIPLEXER is available in: As Removed. We recommend checking your aircraft's wiring diagrams and STC documentation, or contact our avionics team for compatibility assistance.

Does the CI1125 come with an 8130-3 airworthiness tag?

Availability of an FAA 8130-3 tag depends on the part condition. Overhauled and repaired units typically include 8130-3 documentation. As-removed units may include a removal tag with trace history. Contact us for specific documentation on the condition you need.

Do you offer bench testing for the CI1125?

We can arrange bench testing through our network of FAA-certified repair stations. Call (904) 998-9101 for testing availability and turnaround times, or submit an RFQ with your specific requirements.
