CONNECTOR (P/N ms3120e20-39s) - New Surplus
P/N: ms3120e20-39s
Category: Connectors & Contacts
Shipping for this part is quoted to your address. We email you the total to approve before anything is charged.
Available Inventory
| Condition | Price | Stock |
|---|---|---|
| New Surplus | $650.00 | 1 Available |
Product Description

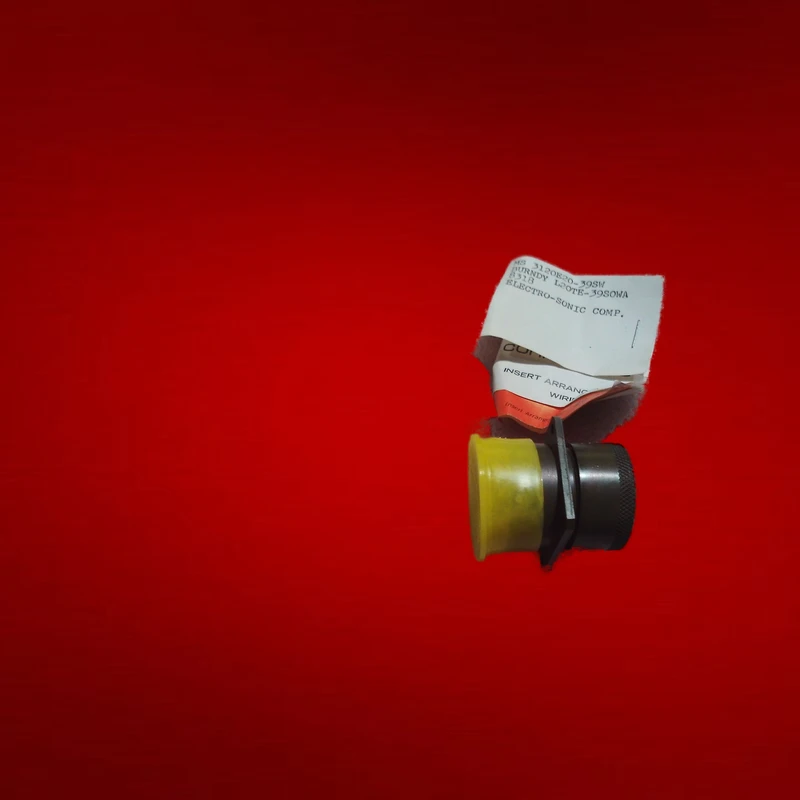

The MS3120E20-39S is a circular bayonet-coupling receptacle connector with an aluminum shell designed for aircraft panel mounting. This bulkhead connector features 39 crimp socket contacts arranged per MIL-DTL-26482 Series I insert configuration 20-39, providing environment-resistant electrical termination in aircraft wiring harnesses. Install using M39029 crimp contacts and verify insert keying orientation per MIL-DTL-26482 specifications.
Commonly used in avionics, power distribution, and control system interfaces where reliable multi-pin connections are required in flight operations.
Please note: Product descriptions are provided for informational purposes. Always refer to your aircraft's Illustrated Parts Catalog (IPC) to verify part compatibility and specifications.
Frequently Asked Questions
What is the CONNECTOR (P/N ms3120e20-39s)?
The MS3120E20-39S is a circular bayonet-coupling receptacle connector with an aluminum shell designed for aircraft panel mounting. This bulkhead connector features 39 crimp socket contacts arranged per MIL-DTL-26482 Series I insert configuration 20-39, providing environment-resistant electrical termination in aircraft wiring harnesses.
Is the ms3120e20-39s compatible with my aircraft's avionics suite?
Avionics compatibility depends on your aircraft model and existing installation. The CONNECTOR is available in: New Surplus. We recommend checking your aircraft's wiring diagrams and STC documentation, or contact our avionics team for compatibility assistance.
Does the ms3120e20-39s come with an 8130-3 airworthiness tag?
Availability of an FAA 8130-3 tag depends on the part condition. Overhauled and repaired units typically include 8130-3 documentation. As-removed units may include a removal tag with trace history. Contact us for specific documentation on the condition you need.
Do you offer bench testing for the ms3120e20-39s?
We can arrange bench testing through our network of FAA-certified repair stations. Call (904) 998-9101 for testing availability and turnaround times, or submit an RFQ with your specific requirements.
