WASHER DIMPLED 100 (P/N nas1169dd10l) - As Removed, New Surplus
P/N: nas1169dd10l
Category: Fasteners & Hardware
Shipping is quoted separately. You'll see the exact cost before you pay.
Available Inventory
| Condition | Price | Stock |
|---|---|---|
| As Removed | Quote | 1 Available |
| New Surplus | $3.50 | 95 Available |
Product Description

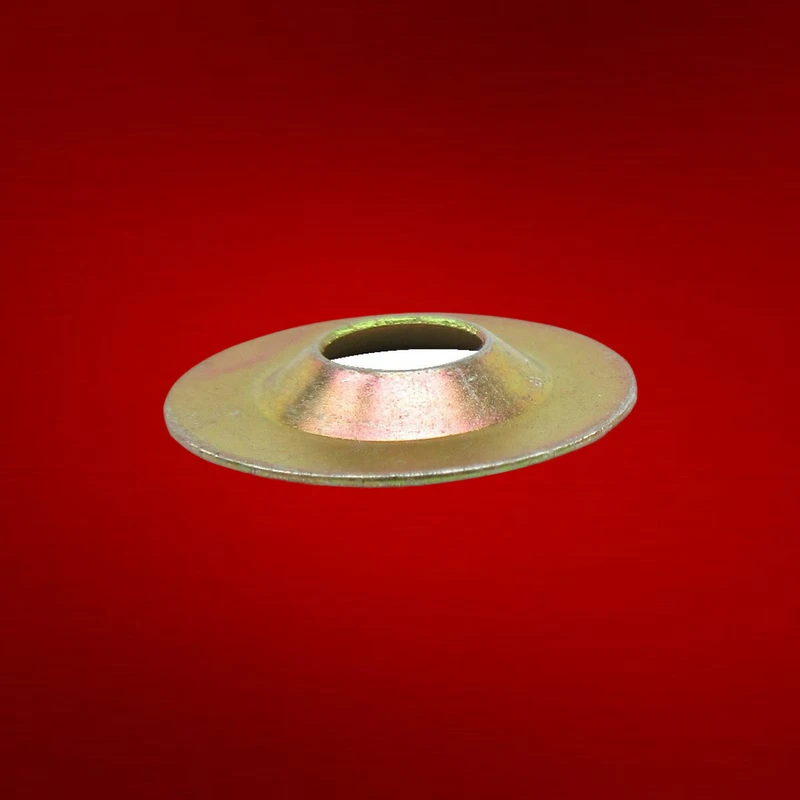

The NAS1169DD10L is a dimpled 100° finishing washer for #10 countersunk fasteners. Manufactured in aluminum alloy, this washer provides seating and load distribution under countersunk screw heads in aerospace panel assemblies. The 100° dimple profile nests the countersunk fastener head flush with the surface, distributing clamping loads across thin sheet metal and composite structures.
Commonly used in general aviation and business aircraft where lightweight fastening with minimal protrusion is required. Install with the countersunk head seated in the dimple per aircraft maintenance manual specifications.
Please note: Product descriptions are provided for informational purposes. Always refer to your aircraft's Illustrated Parts Catalog (IPC) to verify part compatibility and specifications.
Frequently Asked Questions
What is the WASHER DIMPLED 100 (P/N nas1169dd10l)?
The NAS1169DD10L is a dimpled 100° finishing washer for #10 countersunk fasteners. Manufactured in aluminum alloy, this washer provides seating and load distribution under countersunk screw heads in aerospace panel assemblies.
Does the nas1169dd10l meet AN/MS/NAS aviation specifications?
Aircraft hardware is manufactured to military and aviation specifications. The WASHER DIMPLED 100 conforms to its applicable AN (Air Force-Navy), MS (Military Standard), or NAS (National Aerospace Standard) specification. Contact us for specific specification details.
What material is the nas1169dd10l manufactured from?
Aviation hardware is available in various materials including cadmium-plated steel, stainless steel, aluminum alloy, and titanium depending on the application. Contact us for material certification and specifications for the nas1169dd10l.
Can I order the nas1169dd10l in custom quantities?
Yes, we sell hardware in various quantities from single units to bulk lots. The WASHER DIMPLED 100 is available in: As Removed, New Surplus. Submit an RFQ for volume pricing or call (904) 998-9101 for quantity availability.
