5 AMP BREAKER (P/N w23-x1a1g-5) - As Removed, New Surplus
P/N: w23-x1a1g-5
Category: Circuit Breakers & Fuses
Flat-rate shipping. Choose Ground or a faster service at checkout.
Flat-rate shipping covers most parts. If your order turns out to need freight or special handling, we'll contact you with the updated shipping cost before it ships. You can pay the difference or cancel for a full refund. International buyers pay any duties and import taxes.
Available Inventory
| Condition | Price | Stock |
|---|---|---|
| As Removed | Quote | 2 Available |
| New Surplus | $20.00 | 1 Available |
Product Description

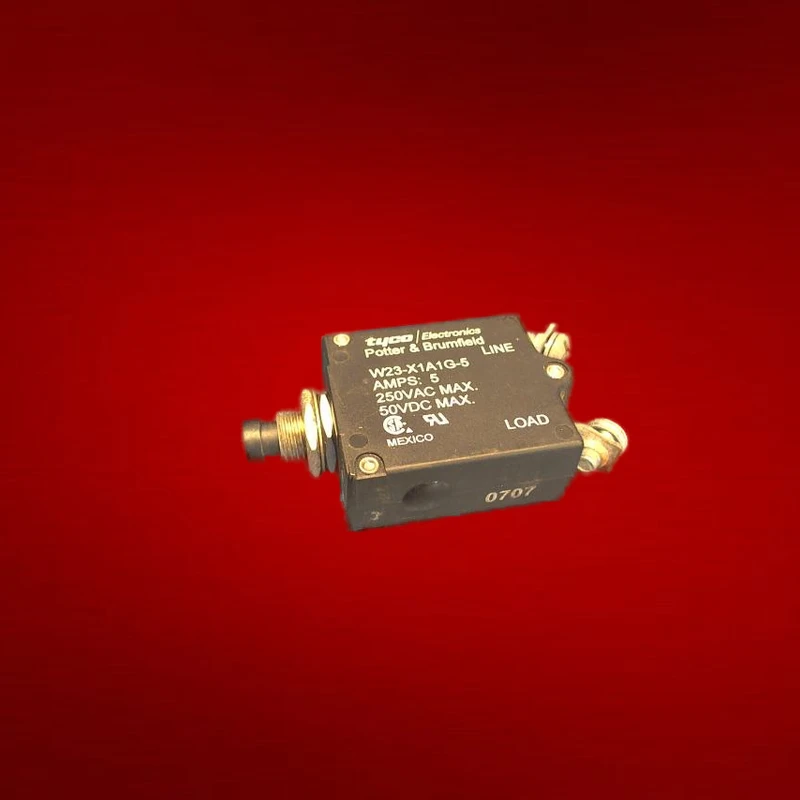

The w23-x1a1g-5 is a 5-amp thermal circuit breaker from TE Connectivity's Potter & Brumfield W23 series. This single-pole breaker protects low-current aircraft electrical circuits including avionics, lighting, and instrument feeders from overcurrent conditions. The thermal trip mechanism automatically opens the circuit when current exceeds 5 amps, preventing wire damage and system faults.
Mounted through a threaded bushing with screw terminals for panel installation. Wire terminations and torque specifications follow the aircraft maintenance manual and wiring diagram requirements.
Please note: Product descriptions are provided for informational purposes. Always refer to your aircraft's Illustrated Parts Catalog (IPC) to verify part compatibility and specifications.
Frequently Asked Questions
What is the 5 AMP BREAKER (P/N w23-x1a1g-5)?
The w23-x1a1g-5 is a 5-amp thermal circuit breaker from TE Connectivity's Potter & Brumfield W23 series. This single-pole breaker protects low-current aircraft electrical circuits including avionics, lighting, and instrument feeders from overcurrent conditions.
Is the w23-x1a1g-5 compatible with my aircraft's avionics suite?
Avionics compatibility depends on your aircraft model and existing installation. The 5 AMP BREAKER is available in: As Removed, New Surplus. We recommend checking your aircraft's wiring diagrams and STC documentation, or contact our avionics team for compatibility assistance.
Does the w23-x1a1g-5 come with an 8130-3 airworthiness tag?
Availability of an FAA 8130-3 tag depends on the part condition. Overhauled and repaired units typically include 8130-3 documentation. As-removed units may include a removal tag with trace history. Contact us for specific documentation on the condition you need.
Do you offer bench testing for the w23-x1a1g-5?
We can arrange bench testing through our network of FAA-certified repair stations. Call (904) 998-9101 for testing availability and turnaround times, or submit an RFQ with your specific requirements.
