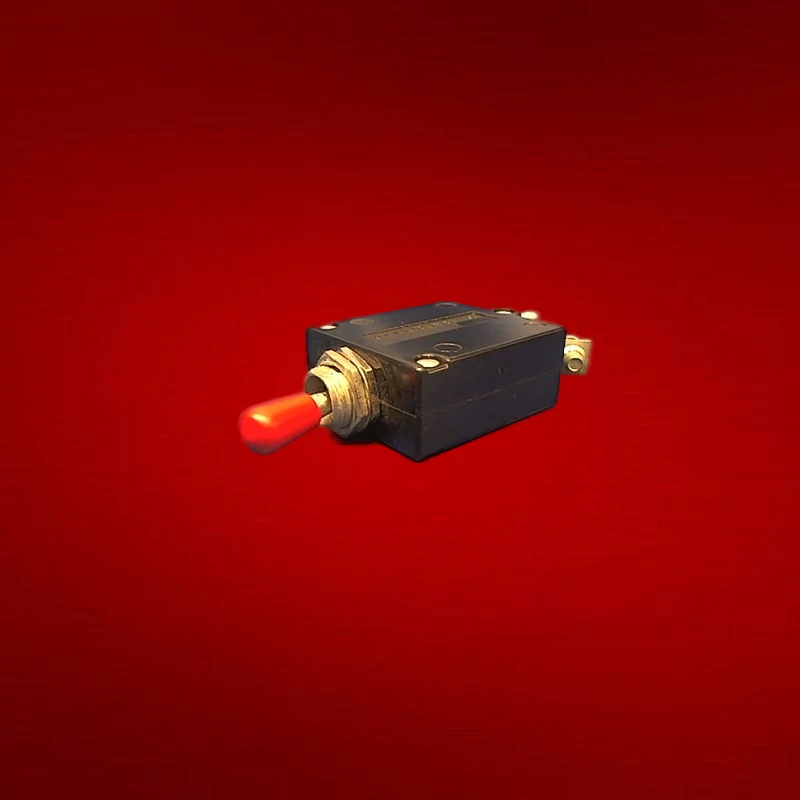

CIRCUIT BREAKER (P/N w31-x2m1g-5) - As Removed
P/N: w31-x2m1g-5
Category: Circuit Breakers & Fuses
This product requires a custom quote. Please contact our sales team for pricing information or submit an RFQ (Request for Quote).
Available Inventory
| Condition | Stock |
|---|---|
| As Removed | 17 Available |
Product Description
The w31-x2m1g-5 is a TE Connectivity Potter & Brumfield W31 series single-pole thermal circuit breaker rated 5 amperes at 50 VDC or 240 VAC. This UL 1077-recognized breaker provides trip-free operation with series-trip protection for aircraft electrical feeders and avionics loads. Install near the main power bus following aircraft wiring diagram specifications and FAA AC 43.13-1B circuit-protection guidance.
Verify panel cutout dimensions and electrical rating compatibility before installation. The thermal mechanism responds to sustained overcurrent conditions, protecting wiring and connected equipment from damage.
Please note: Product descriptions are provided for informational purposes. Always refer to your aircraft's Illustrated Parts Catalog (IPC) to verify part compatibility and specifications.
Frequently Asked Questions
What is the CIRCUIT BREAKER (P/N w31-x2m1g-5)?
The w31-x2m1g-5 is a TE Connectivity Potter & Brumfield W31 series single-pole thermal circuit breaker rated 5 amperes at 50 VDC or 240 VAC. This UL 1077-recognized breaker provides trip-free operation with series-trip protection for aircraft electrical feeders and avionics loads.
Is the w31-x2m1g-5 compatible with my aircraft's avionics suite?
Avionics compatibility depends on your aircraft model and existing installation. The CIRCUIT BREAKER is available in: As Removed. We recommend checking your aircraft's wiring diagrams and STC documentation, or contact our avionics team for compatibility assistance.
Does the w31-x2m1g-5 come with an 8130-3 airworthiness tag?
Availability of an FAA 8130-3 tag depends on the part condition. Overhauled and repaired units typically include 8130-3 documentation. As-removed units may include a removal tag with trace history. Contact us for specific documentation on the condition you need.
Do you offer bench testing for the w31-x2m1g-5?
We can arrange bench testing through our network of FAA-certified repair stations. Call (904) 998-9101 for testing availability and turnaround times, or submit an RFQ with your specific requirements.
