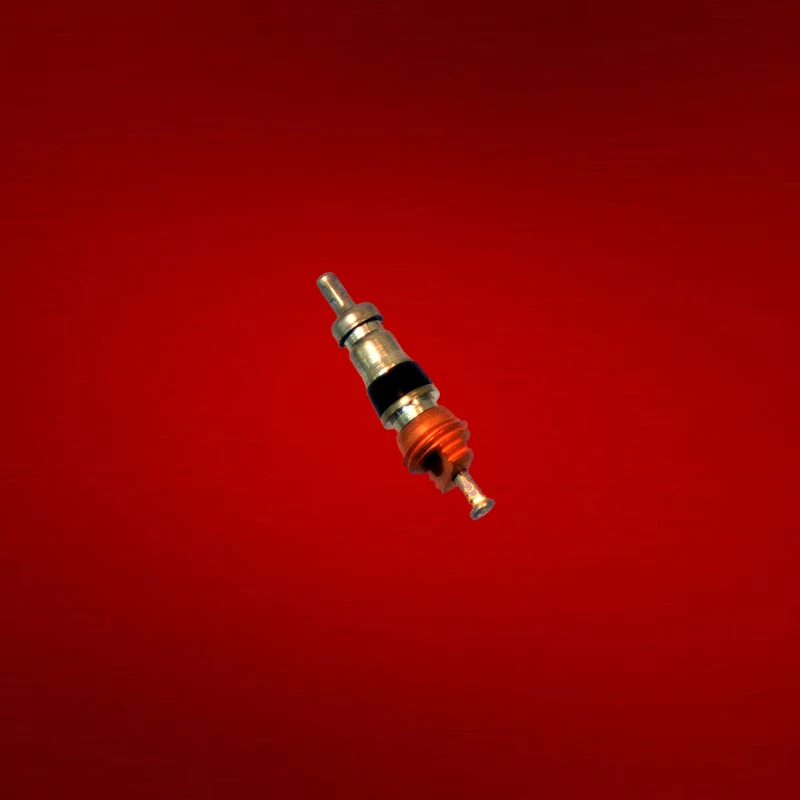

VALVE CORE (AN809-1) (P/N 302dn) - New Surplus
P/N: 302dn
Category: Valves
Flat-rate shipping. Choose Ground or a faster service at checkout.
Flat-rate shipping covers most parts. If your order turns out to need freight or special handling, we'll contact you with the updated shipping cost before it ships. You can pay the difference or cancel for a full refund. International buyers pay any duties and import taxes.
Available Inventory
| Condition | Price | Stock |
|---|---|---|
| New Surplus | $1.04 | 14 Available |
Product Description
The AN809-1 is a valve core for Schrader-type service valves on aircraft pneumatic and hydraulic systems. This precision component retains and seals pressurized gas during inflation and servicing operations. Commonly installed in landing gear shock strut service valves like the AN812, the core enables routine charging and maintenance procedures.
Manufactured to MIL-C-5499 specifications for aerospace reliability. Installation follows the applicable aircraft maintenance manual; verify compatibility with your system's illustrated parts catalog before service.
Please note: Product descriptions are provided for informational purposes. Always refer to your aircraft's Illustrated Parts Catalog (IPC) to verify part compatibility and specifications.
Frequently Asked Questions
What is the VALVE CORE (AN809-1) (P/N 302dn)?
The AN809-1 is a valve core for Schrader-type service valves on aircraft pneumatic and hydraulic systems. This precision component retains and seals pressurized gas during inflation and servicing operations.
What hydraulic fluid type is the 302dn compatible with?
Hydraulic component compatibility depends on the aircraft system design. Common aviation hydraulic fluids include MIL-PRF-5606 (mineral-based), MIL-PRF-83282 (synthetic), and Skydrol (phosphate ester). Verify the VALVE CORE (AN809-1) against your aircraft maintenance manual for fluid compatibility.
Does the 302dn come pressure-tested and certified?
Overhauled and repaired hydraulic components are pressure-tested per manufacturer specifications and include 8130-3 documentation. The VALVE CORE (AN809-1) is available in: New Surplus. Contact us for test documentation on your selected condition.
What is the turnaround time for hydraulic component orders?
In-stock hydraulic components ship same business day before 3 PM EST. We provide 24/7 AOG support at (904) 998-9101 for urgent hydraulic system needs. RFQ submissions are typically quoted within 24 hours.
